Main Features
Manufacturer: Goldhofer
Type: STZ-VP 3-55/80A
Chassis number: WG0STZV39E0036631
Year: 2014

Weights/Loading Capacity
King-Pin load: 35.000 kg
Axle load: 12.000 kg
Total axle load: 36.000 kg
GVW: 71.000 kg
Empty weight: ca. 17.200 – 17.850 kg
Loading capacity: ca. 53.800 kg

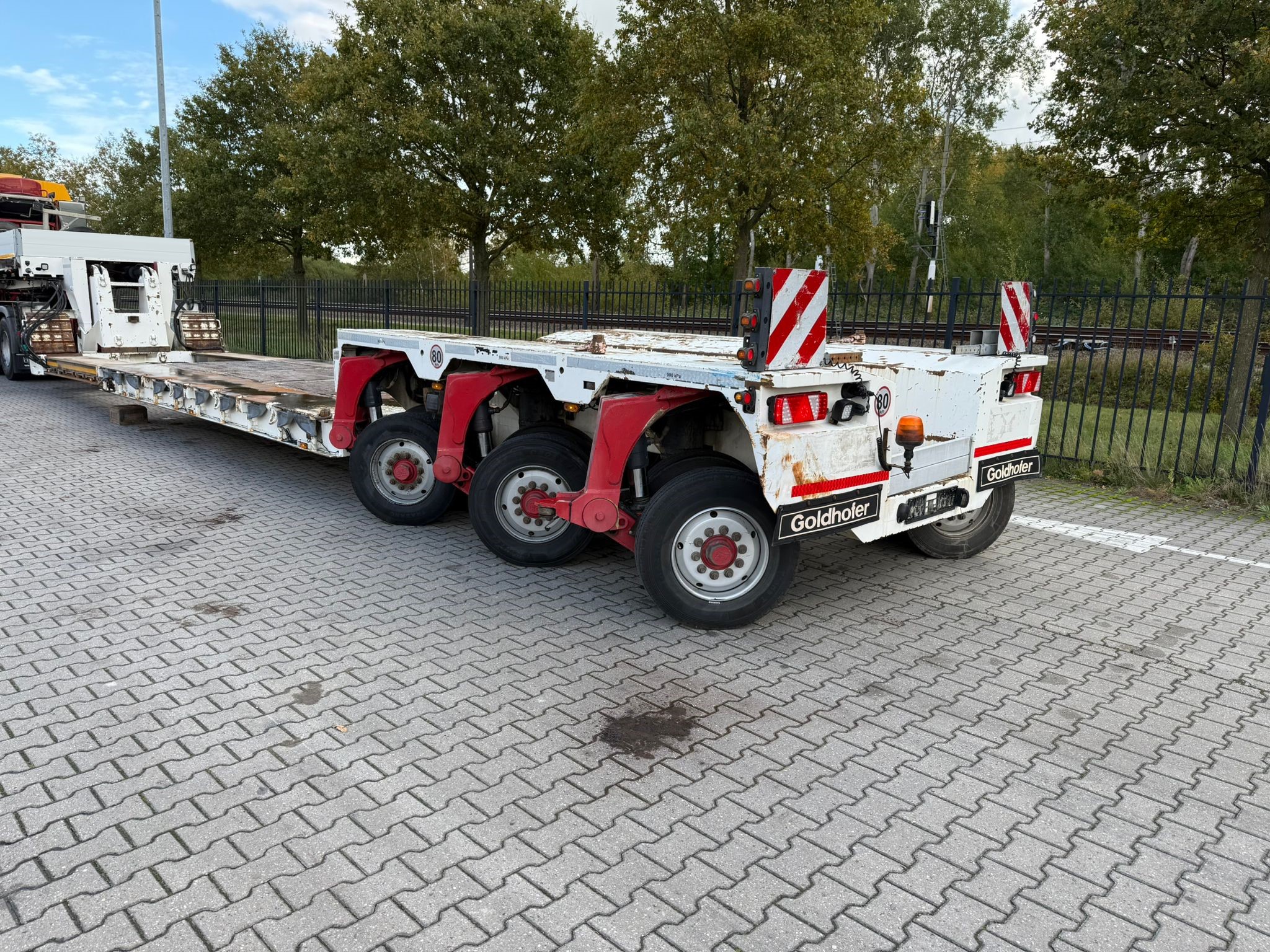

Axles
Brand axles: BPW

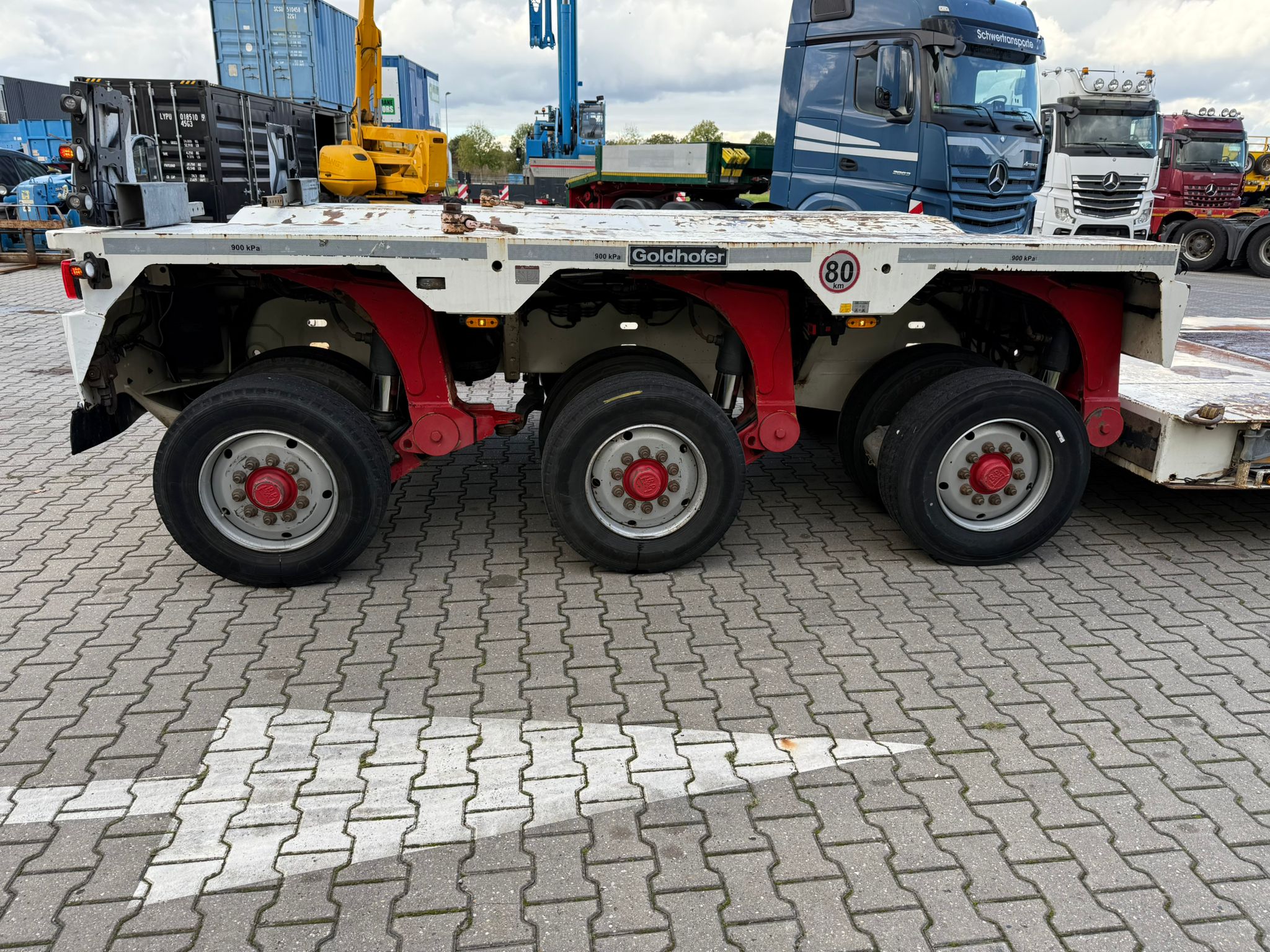

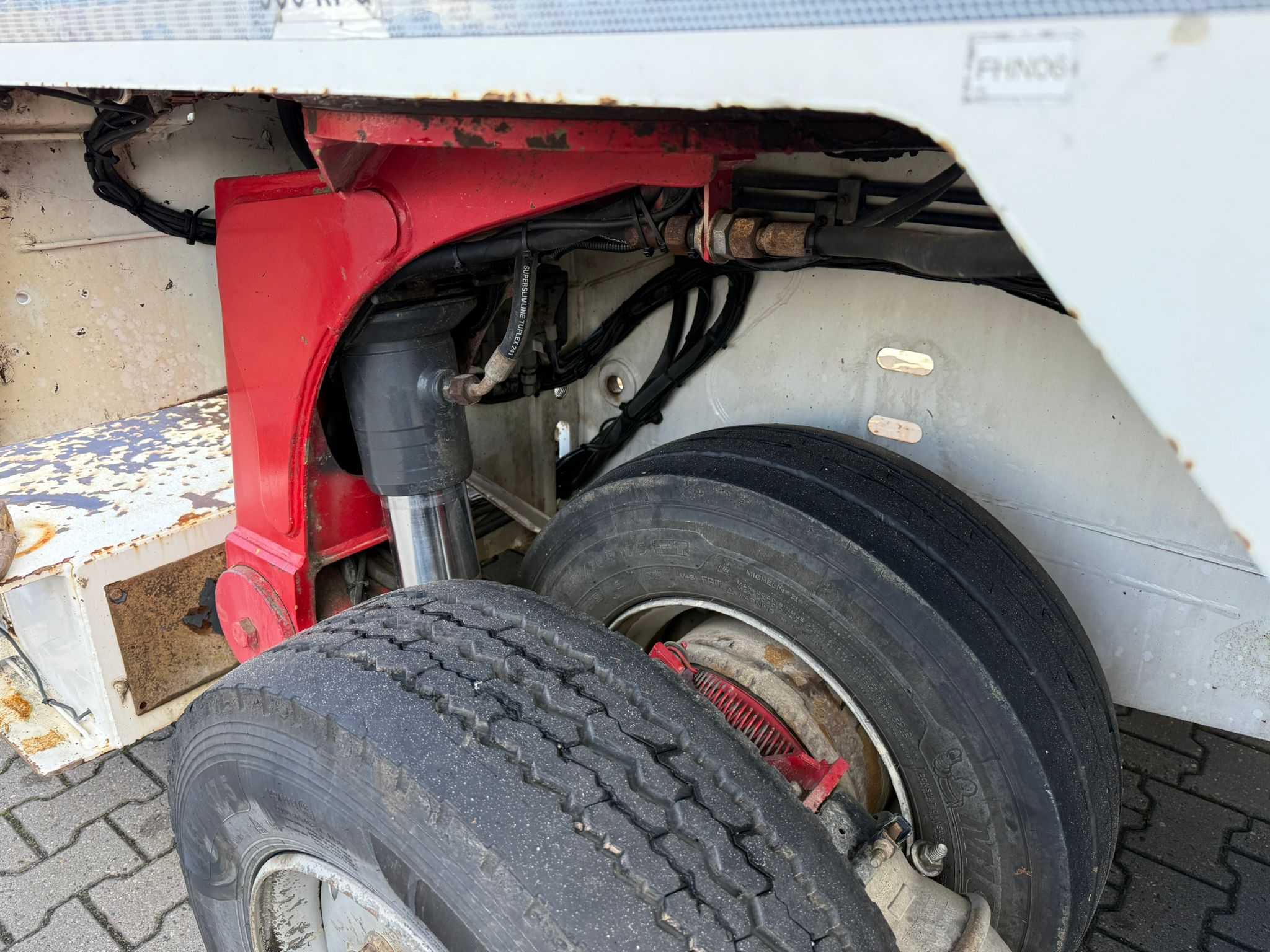

Hydraulic pendulum axles
All axles hydraulic steering
WABCO braking system with EBS
Tyres: 245 / 70 R 17.5  | load index 146/146F

Dimensions
Length: 15.520 mm

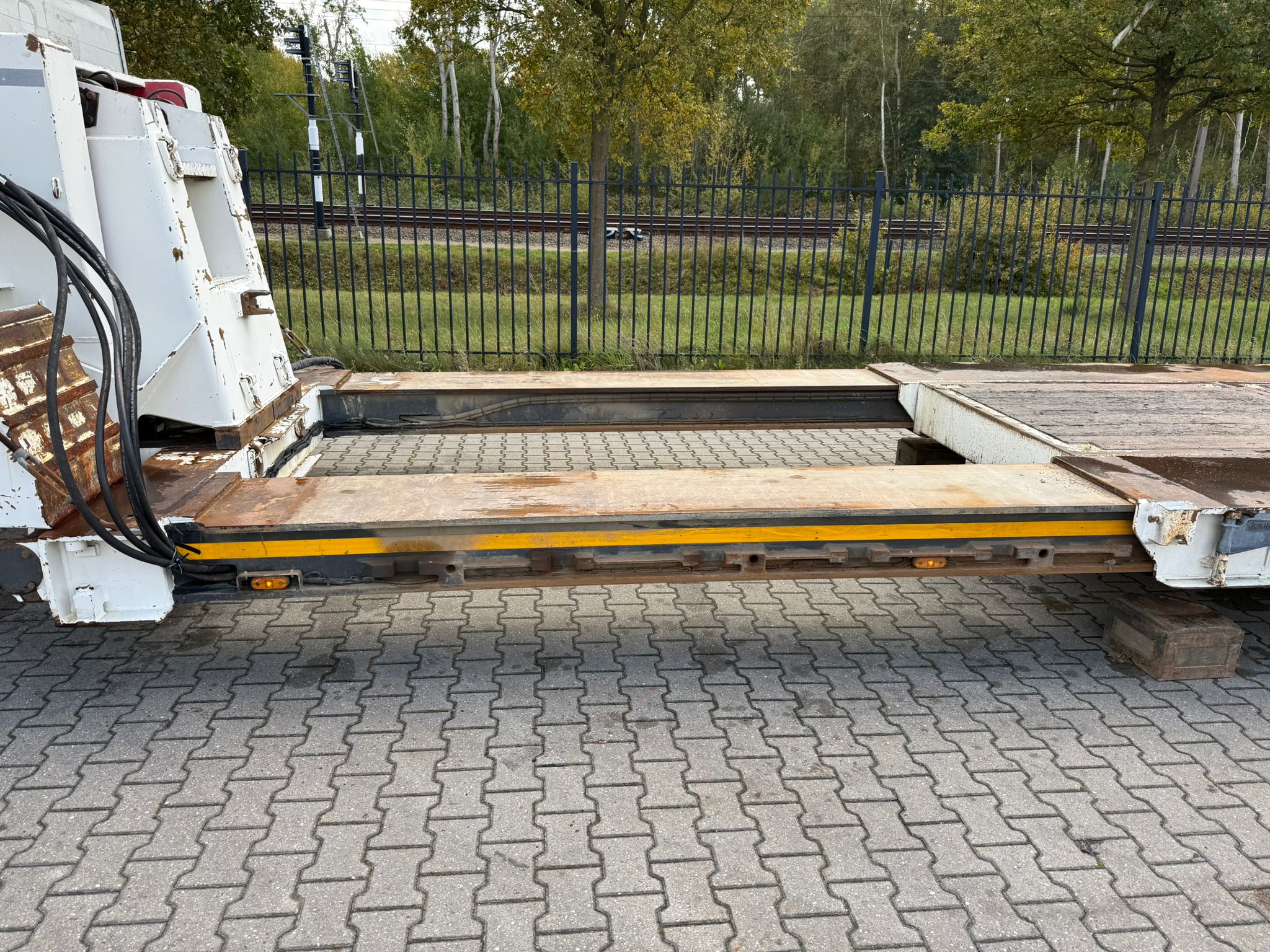

Extension:  + 3.000 mm
Max extended length: 18.520 mm
Loading floor lenght: 6.300 mm + 3.000 mm
Loading floor width:  2.750 mm
Loading floor height: 450 mm
Bogie height: 1.100 mm (+385 mm -215 mm)
King-Pin height: +/-  1.390 mm

Additional Information
1x Extendable
Hydraulic operational system powered by the truck’s PTO

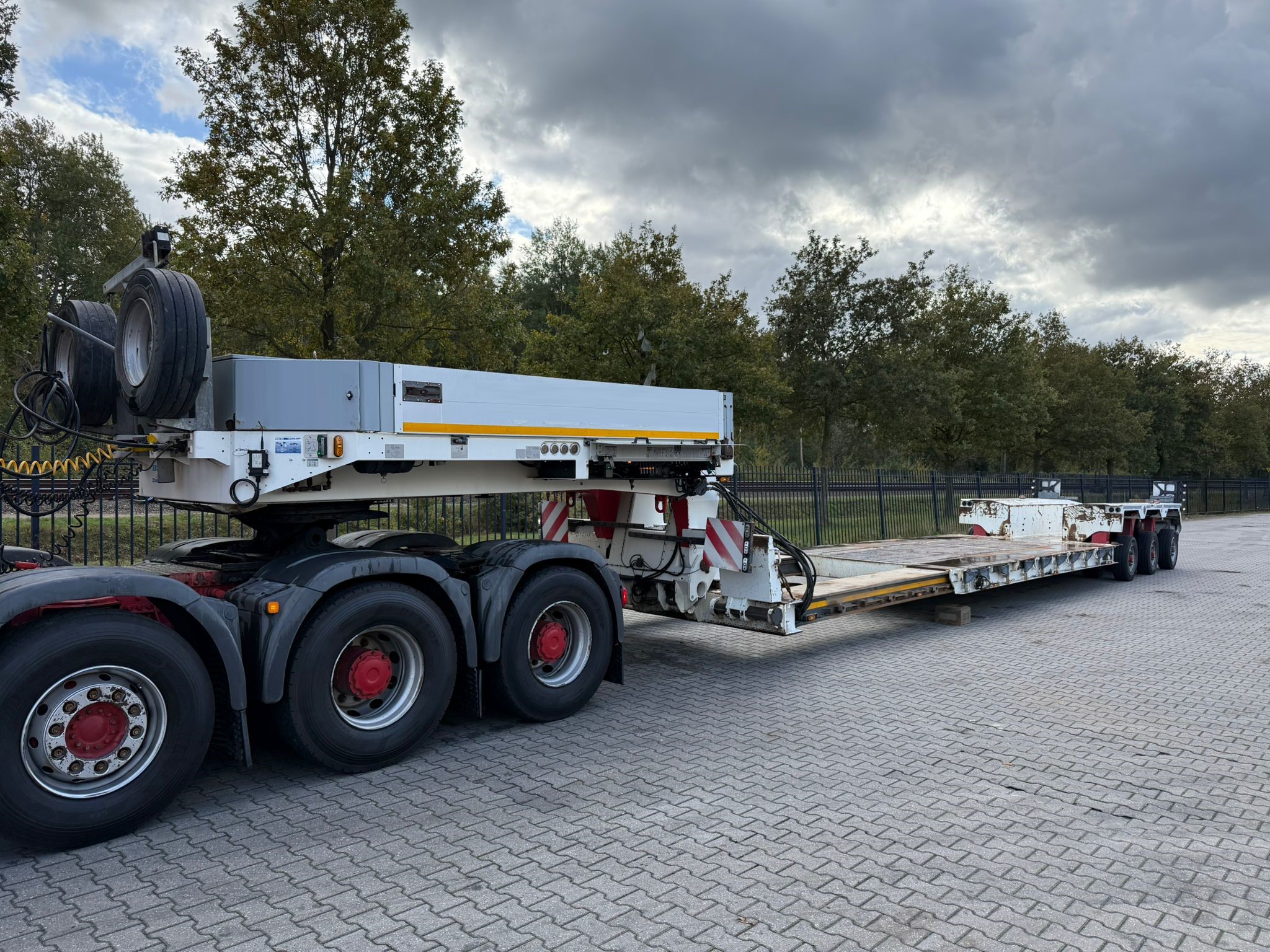

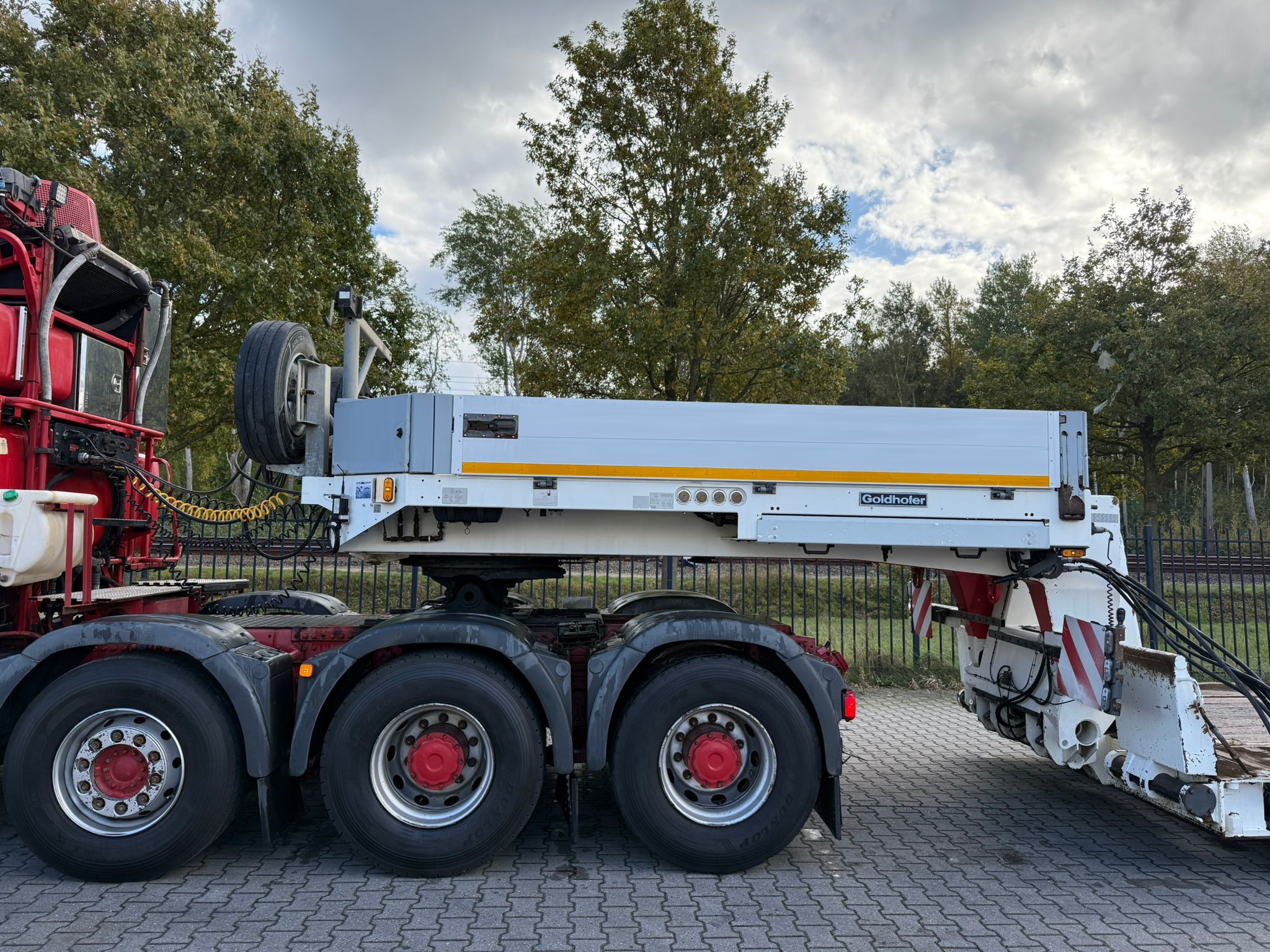

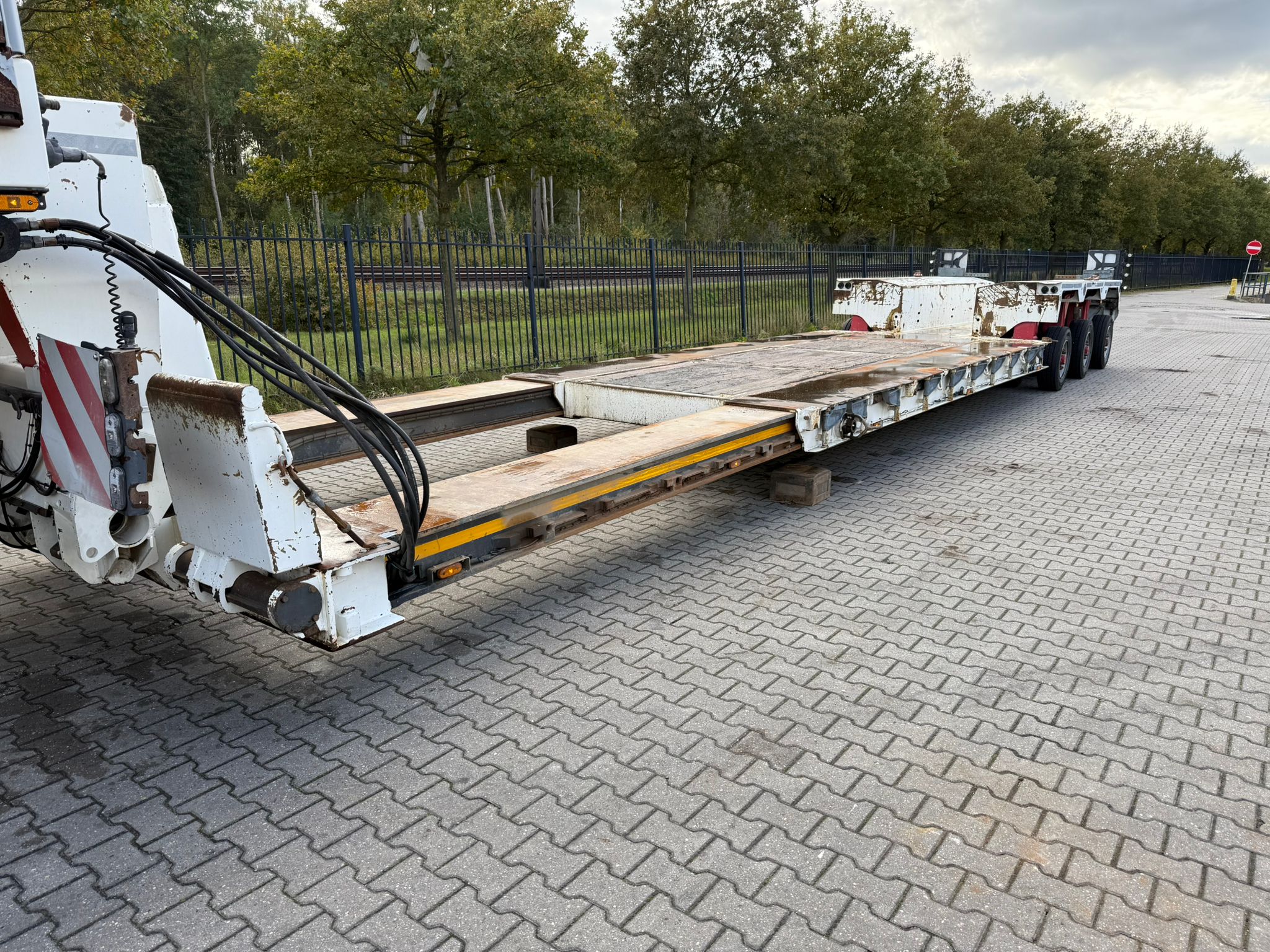

Detachable Gooseneck with front loading ramps
Excavator trough
Radio and Cable remote control
Lashing rings
Stake pockets
Wooden loading floor
Stainless steel toolbox
2x Spare wheel + holder
Working lamps

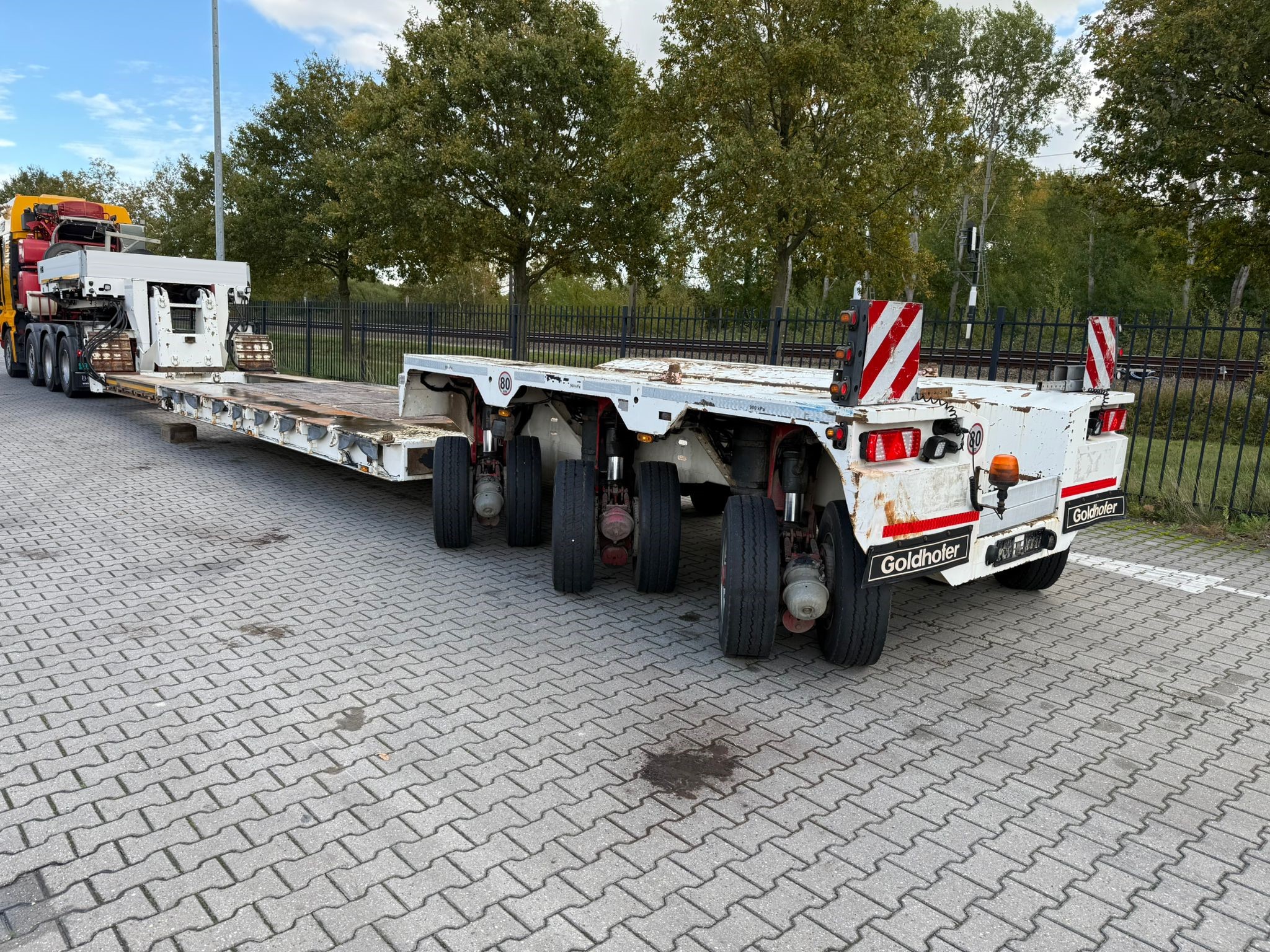

Rear bumper with lights

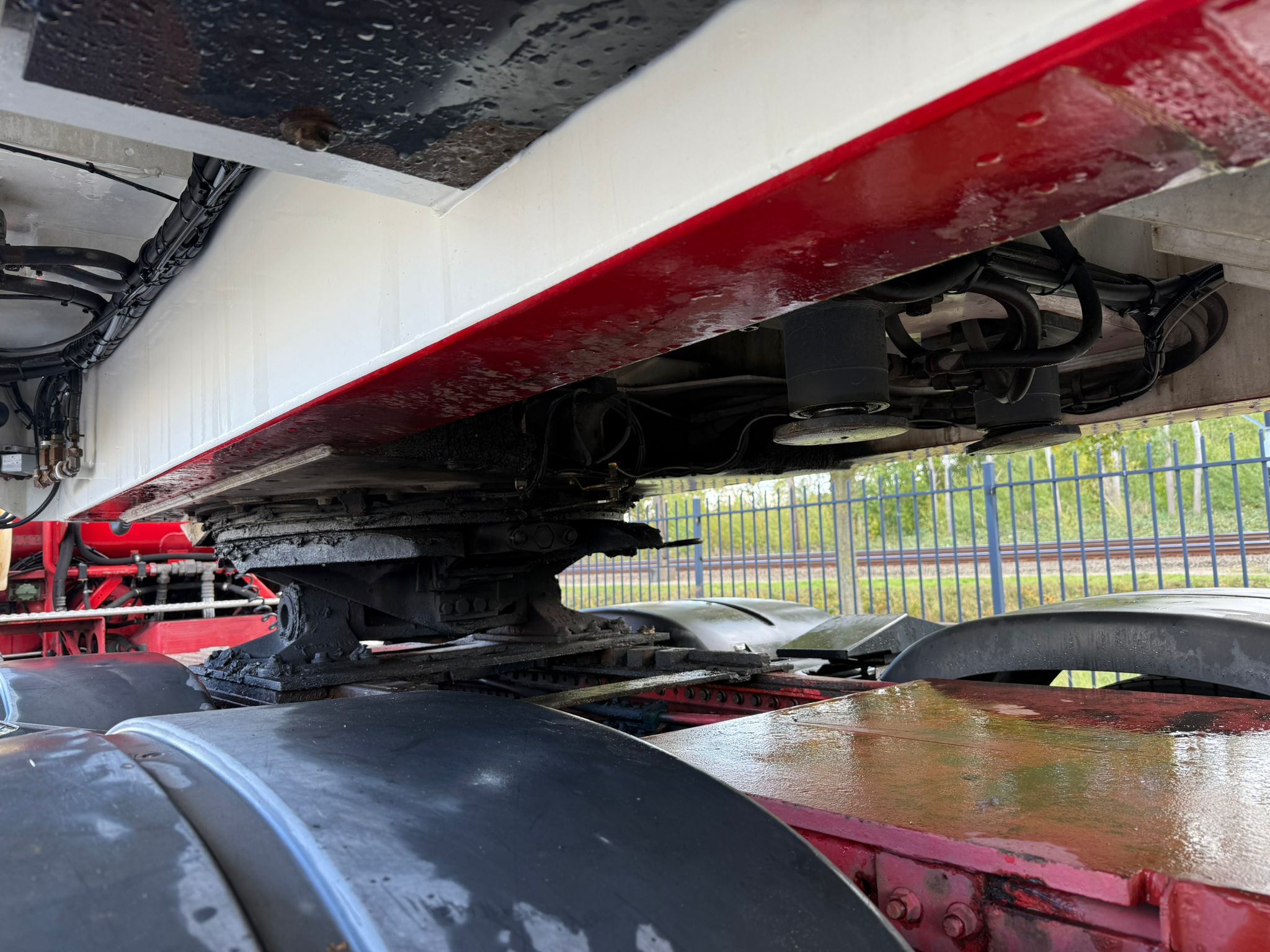

King-pin  3,5”
Central greasing system Beka-Max
