Main Features
Manufacturer: Goldhofer
Type: STZ H8-82-80A
Chassis number: WSTZH8D90030493
Year: 2009

Weights
King-Pin load: 26.000 kg
Axle load: 10.000 kg
Total axle load: 8x 10.000 kg = 80.000 kg
GVW: 106.000 kg
Empty weight: 23.480 kg
Loading capacity: 82.520 kg

Axles
Brand axles: BPW
Hydraulic supsension
WABCO braking system with EBS
ABS
1st axle friction steering
2nd axle rigid
Axles 3 to 8 hydraulic steering
Axle 1 & 2 liftable
Tyres: 235 / 75 R17.5

Dimensions
Length: 16.200 mm

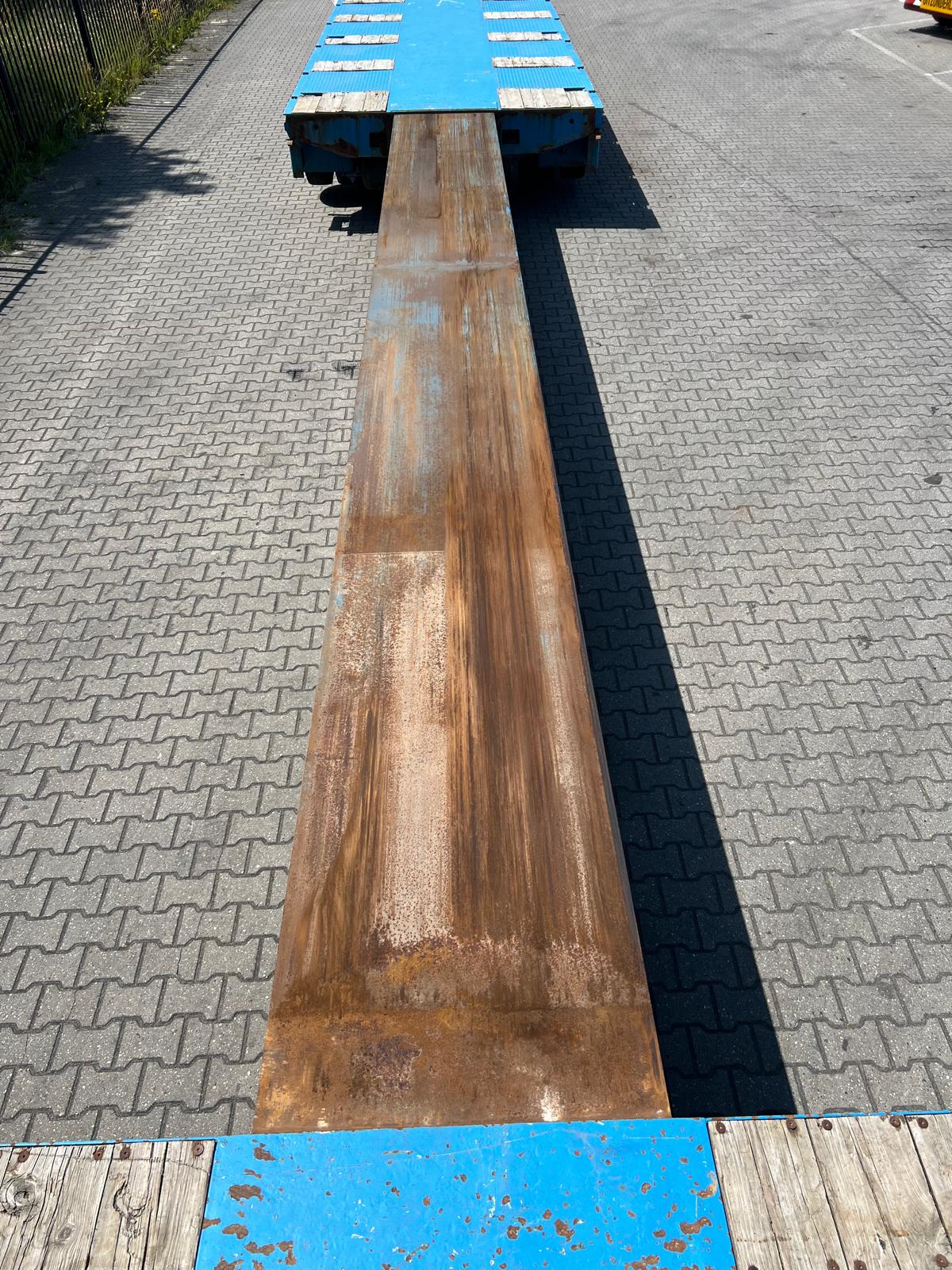

Extensions: 8.300 mm

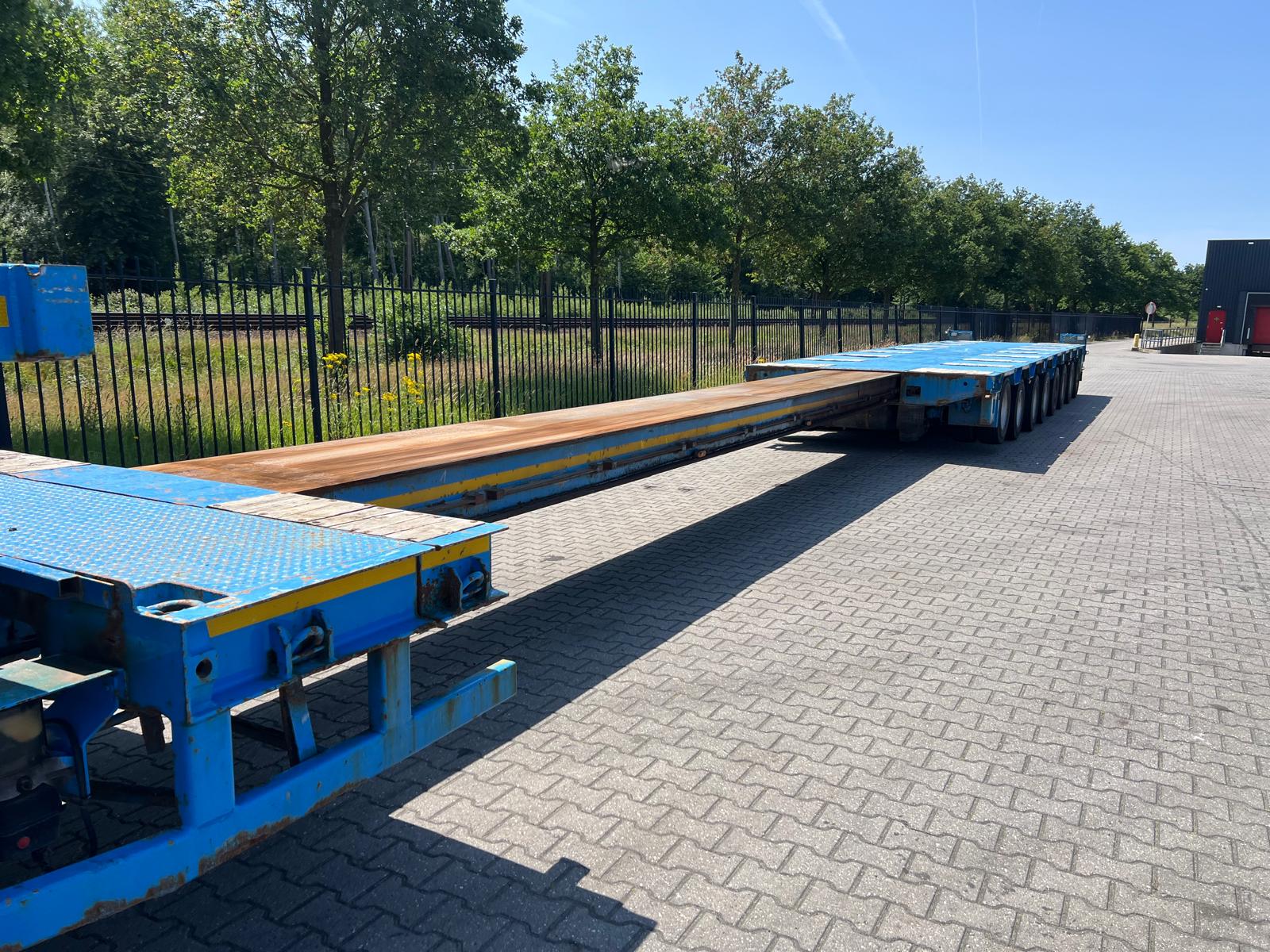

Max extended length: 24.500 mm
Loading floor lenght: 12.300 mm to 20.600 mm
Loading floor width: 2.750 mm
Loading floor Height: 955 mm
King-Pin height: +/-  1.280 mm

Additional Information
Operated on truck hydraulics

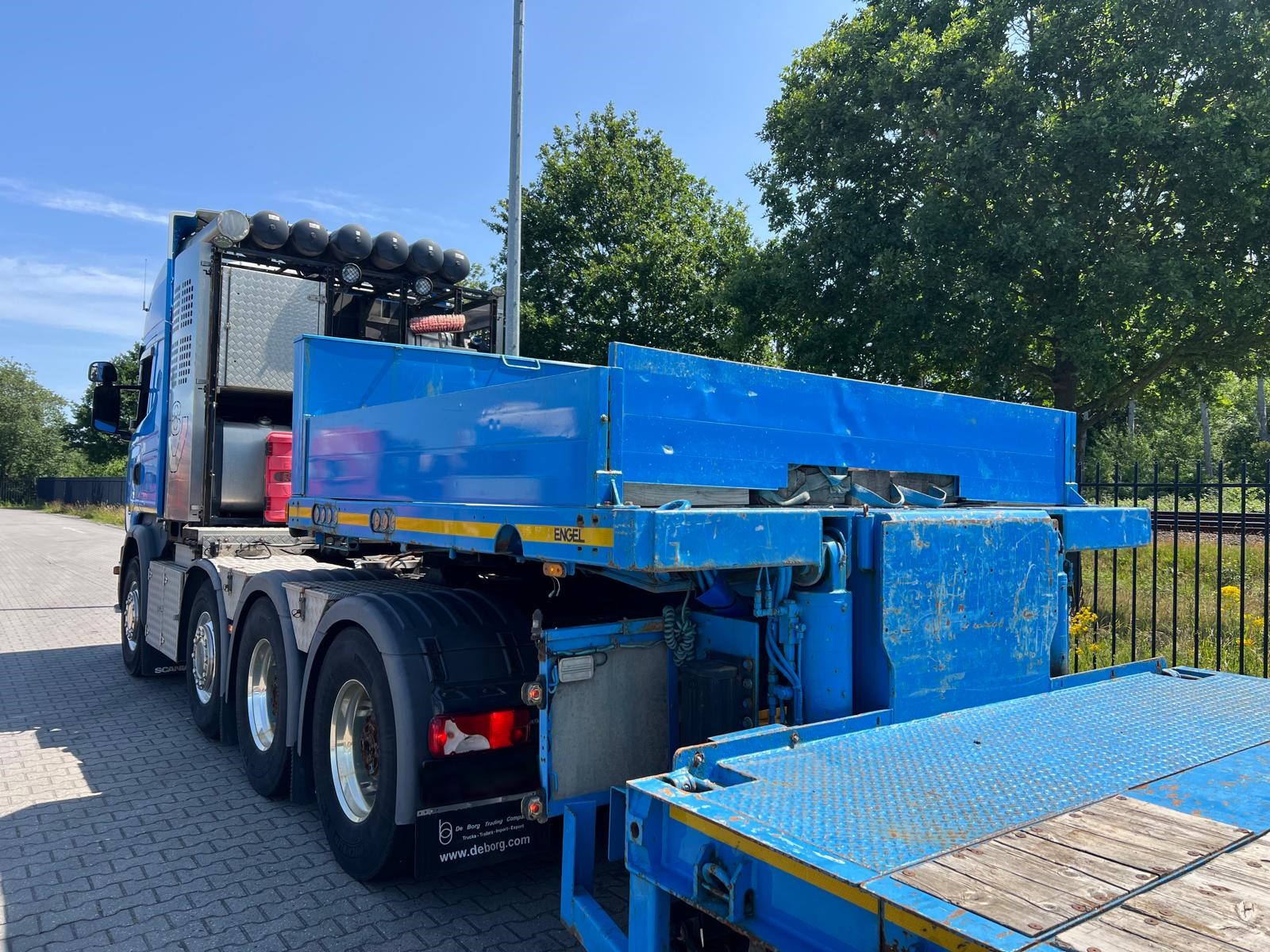

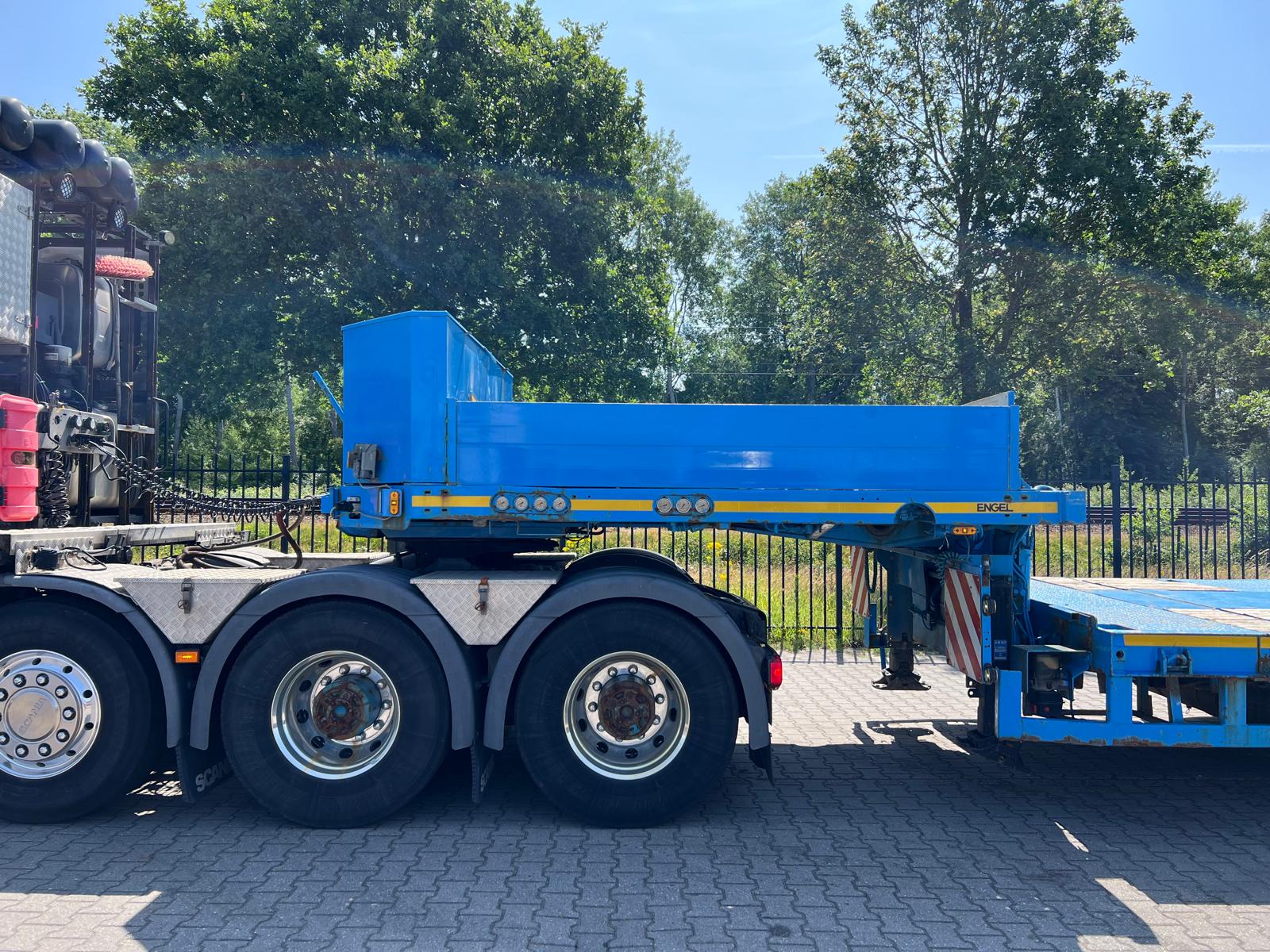

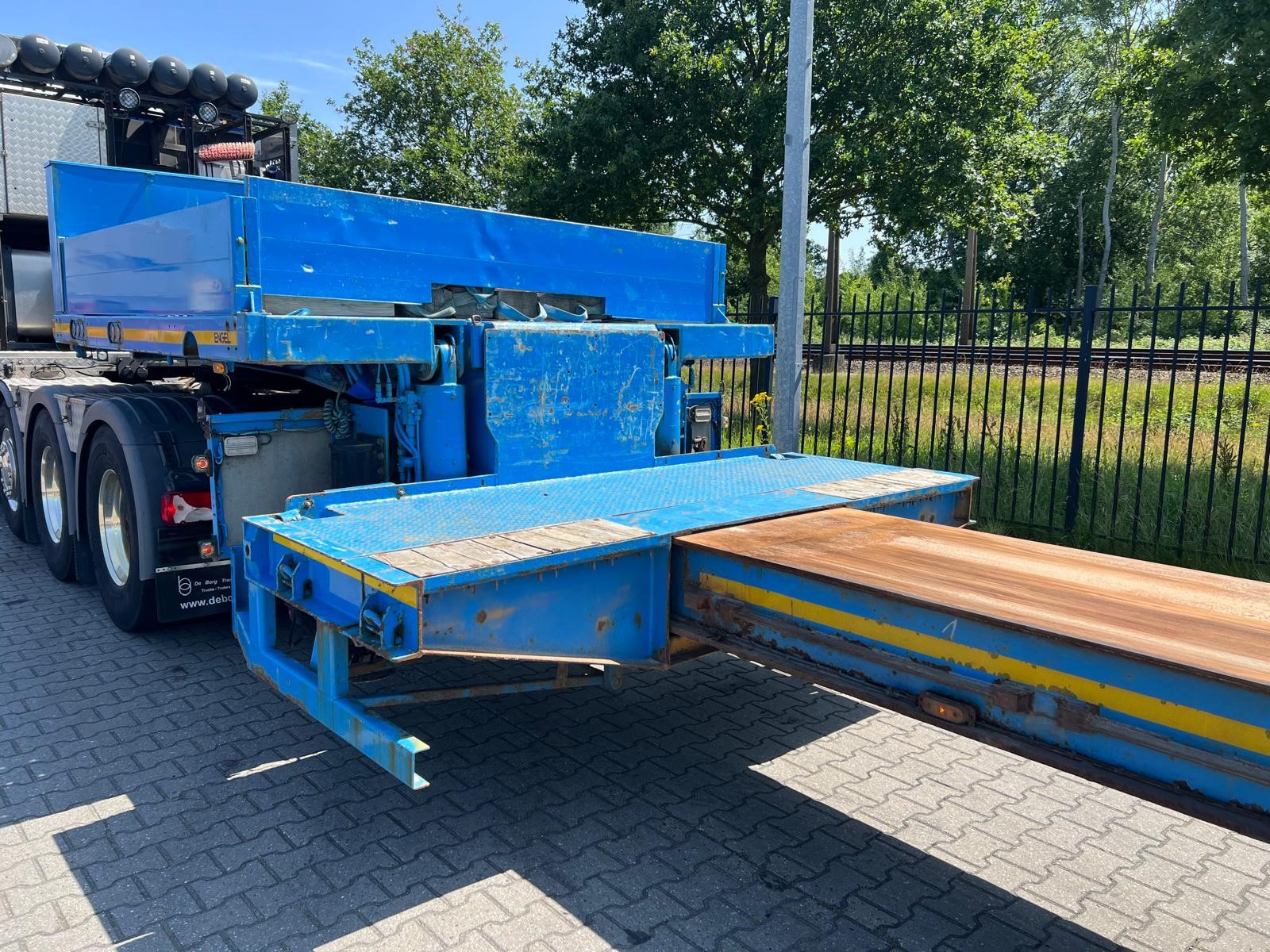

Hydraulic operated gooseneck
Lashing rings
Stake pockets
Wooden loading floor
Mechanical landing gear
Toolbox in gooseneck
King-pin 3,5”
Central greasing

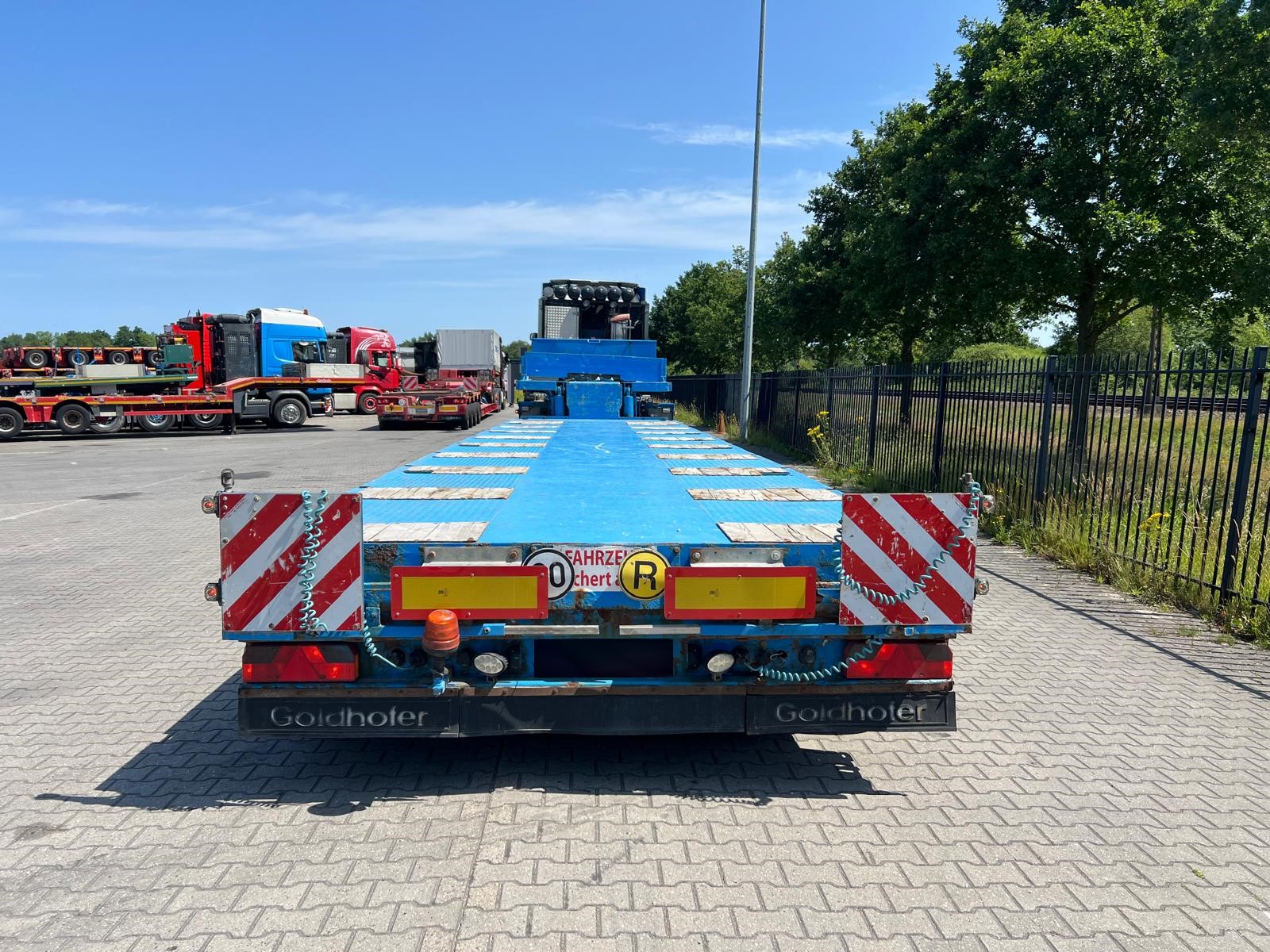

Markerboards oversize load
Radio remote control
