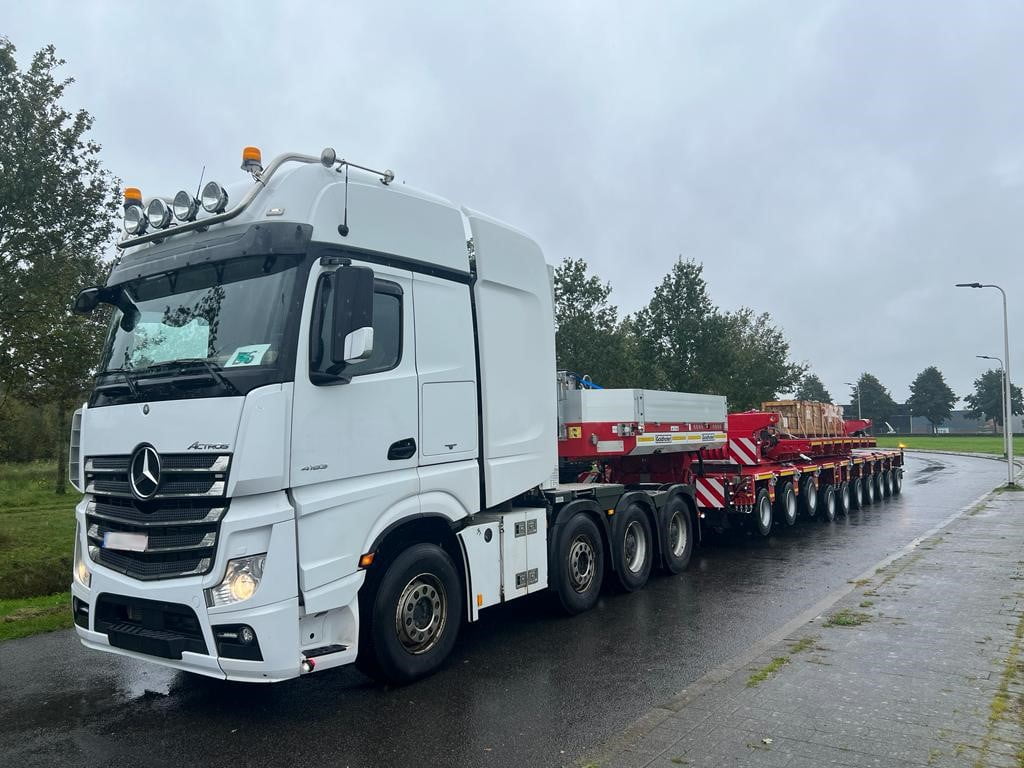

Main Features
Manufacturer: Goldhofer
Units:
- 1x SH 35 Gooseneck incl PPU
- 1x THP SL 6
- 1x THP SL 4
- 1x Crawler deck BB 450
Chassis numbers:
- Gooseneck: WG0SH0003P2042677
- THP SL 6: WG0THPS62P0042678
- THP SL 4: WG0THPS42P0042677
Year: NEW / Unused
Bogie – Main features THP/SL
- Maximum axle load 45,0 t at 1 km/h
- pendular wheelsets mounted onto the chassis by means of ball bearing race ring tires 215/75 R 17.5 (8 pieces per axle line)-> Michelin
- axles type: BPW
- bogie width 3.000 mm
- hydraulic axle stroke +/- 300 mm
- box-shaped center frame with integrated air tanks
- hydro-mechanic two-circuit all-wheel force steering integrated into the chassis
- maximum steering angle +/- 55 in all driving heights
- electr. brake-system “EBS” (ABS (anti-lock-braking-system), ALB (automatic load-sensing valve) function) and AGS (automatic slack-adjuster)
1 x Goldhofer THP/SL 6
- heavy duty combination module with 6-axle lines
- hydro-mechanical steering (With counter-steering)
1 x Goldhofer THP/SL 4
- heavy duty combination module with 4-axle lines
- hydro-mechanical steering (Without counter-steering)
Gooseneck SH – 35 / 2 Uni
- Loading platform (approx. 3.700 mm x 2.440 mm) with anti-slipping-surface
- Technical 5th wheel load 35.000 kg
- 5th wheel plate supported on ball bearing race ring, including 3 1/2″- king pin and adjustable steering wedge
- Integrated hydro-mechanical double steering for activating the steering system Lifting and lowering by means of hydraulic, including hydraulic supporting cylinders
- Hydraulic differential gear
- Hydraulic, brake and electric connection to the prime mover
- Swing clearance radius 2.800 mm
- Coupling-height 1.450 mm
- Lubrication points centralized behind the steering box
- Operation devices for hydraulic functions on the left side, including protection cover
- Device for attaching claw coupling head of diverse loading decks
- Integrated lashing coupling for attaching THP bogies
- Detachable ladder included
- fixation possibility for a hydraulic aggregate
Loading Security
- 1 pair lashing rings in the rear (LC= 20,000 daN)
- 4 pairs threaded bushings M30 on the loading area for screw-in lashing rings (LC = 10,000 daN)
1x pair of wide load marker board 423 x 423 mm
1 x Aluminium side walls 400 mm high
- 4-sides closed with chamfered corners
- lateral kinnegrip stakes
- Paint side walls in
- Paint stakes for side walls in Aluminium anodized
1 x adapter cable, from 15-pin to 2x 7-pin
1 x Holder for radio remote control
1 x spare wheel carrier
- on the frontside, 2 possible positions for one spare wheel each
1 x auto lube for goose neck with pump, make Beka-MAX
1 x Crawler deck BB 450 A
- extendable, from 8.000 mm to 13.000 mm
- payload classification 100t / 120t in combination 4+6
- design height 450 mm; length 8.000 mm, width 1.350 mm
- Extendible in steps of 500 mm
- At the rear lashing coupling for connection to THP-bogies
- In the front claw couplings for connection to gooseneck or claw coupling adapter
- Integrated supply lines for hydraulics, brake and electrics with connection couplings
- weight approx 14.400 kg
Loading security
- 1 pair lashing rings (LC = 30,000 daN) in the rear coupling head
- 8 pair lashing rings (LC = 20,000 daN) arranged at the outside of the outer beam
Side extensions
- fold out outriggers and inserts on the outer beam (basic length)
fold outside extensions and mattresses on the inner tube
1 x quick coupling adapter THP/SL,
- to connect the coupling claws of a deck to coupling lashes of a modular bogie or a goose neck
- deadweight 1.600 kg
