Main Features
Manufacturer: Goldhofer

Gooseneck SH 35/ 2: WG0SH0003S2101140
Goldhofer THP SL 4: WG0THPS49S2101138
Goldhofer THP SL 5: WG0THPS54S2101136
Goldhofer THP SL 6: WG0THPS69S2101139

YOM: New / Unused

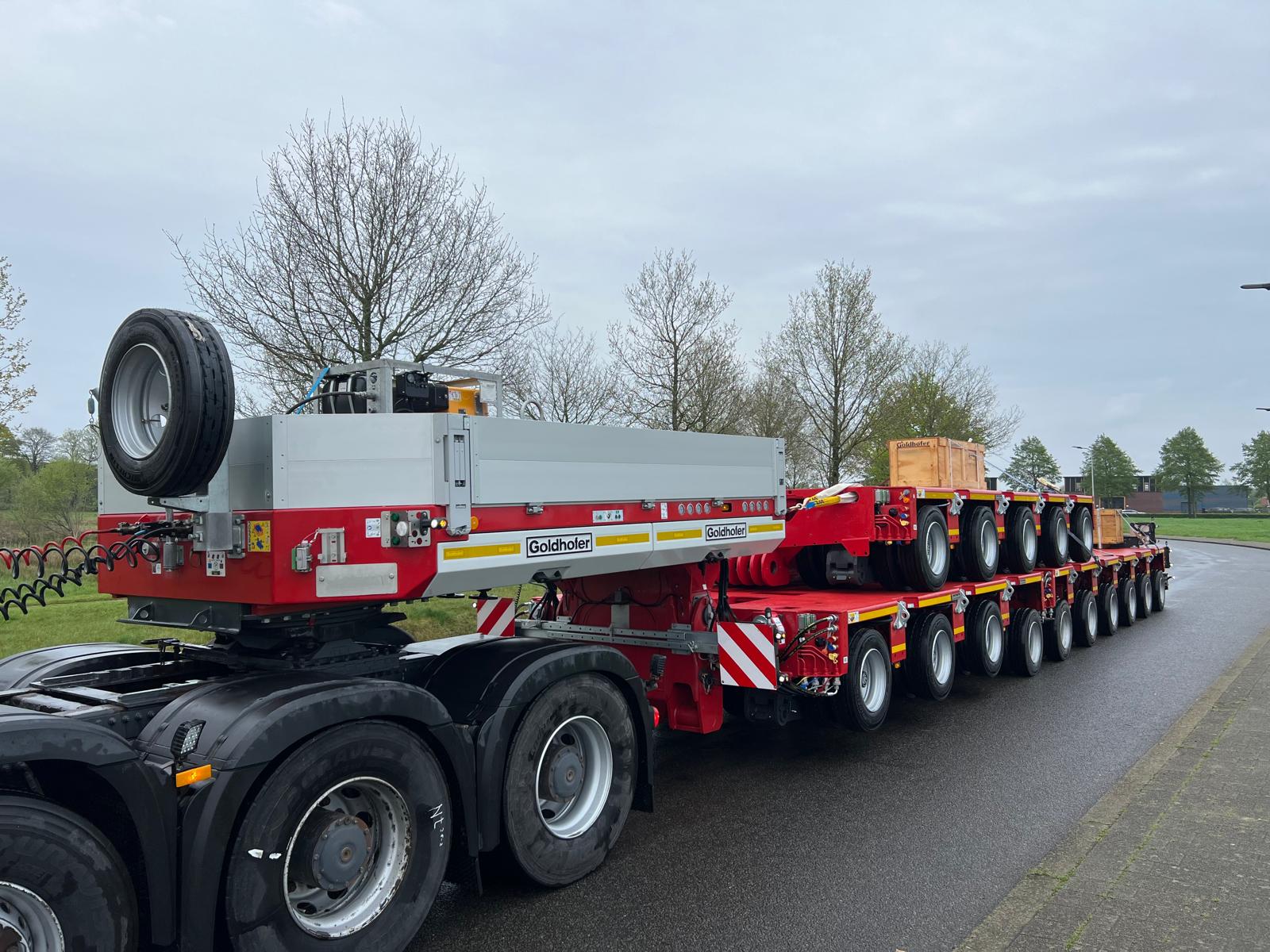

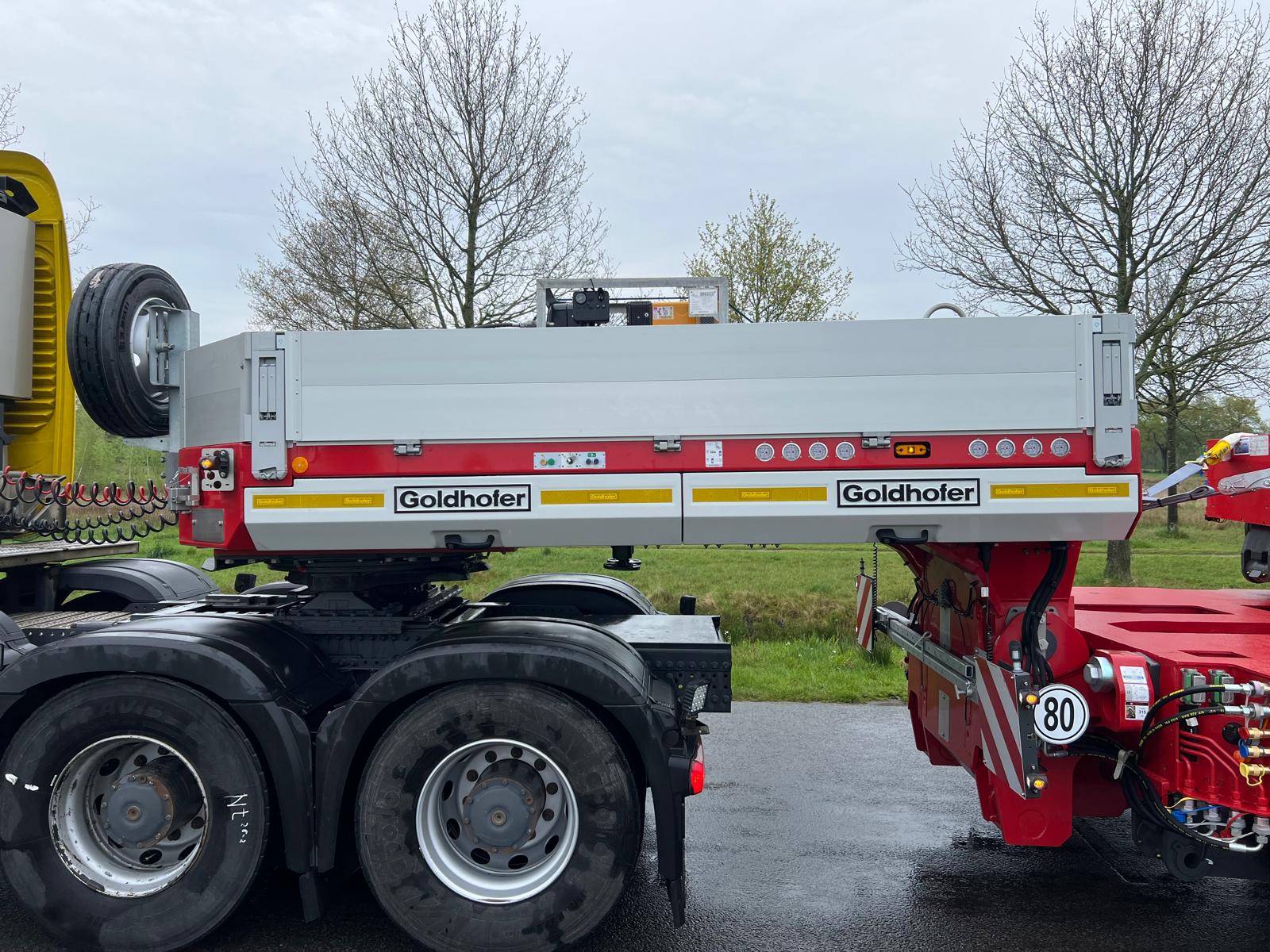

Universal Gooseneck SH 35/2
Loading platform: 3.700 mm x 2.440 mm
3.5 inch king pin
Hydrualic Lifting and lowering
Hyrdaulic supporting cylinders
Coupling height: 1.450 mm
Integrated lashing coupling
Lashing rings

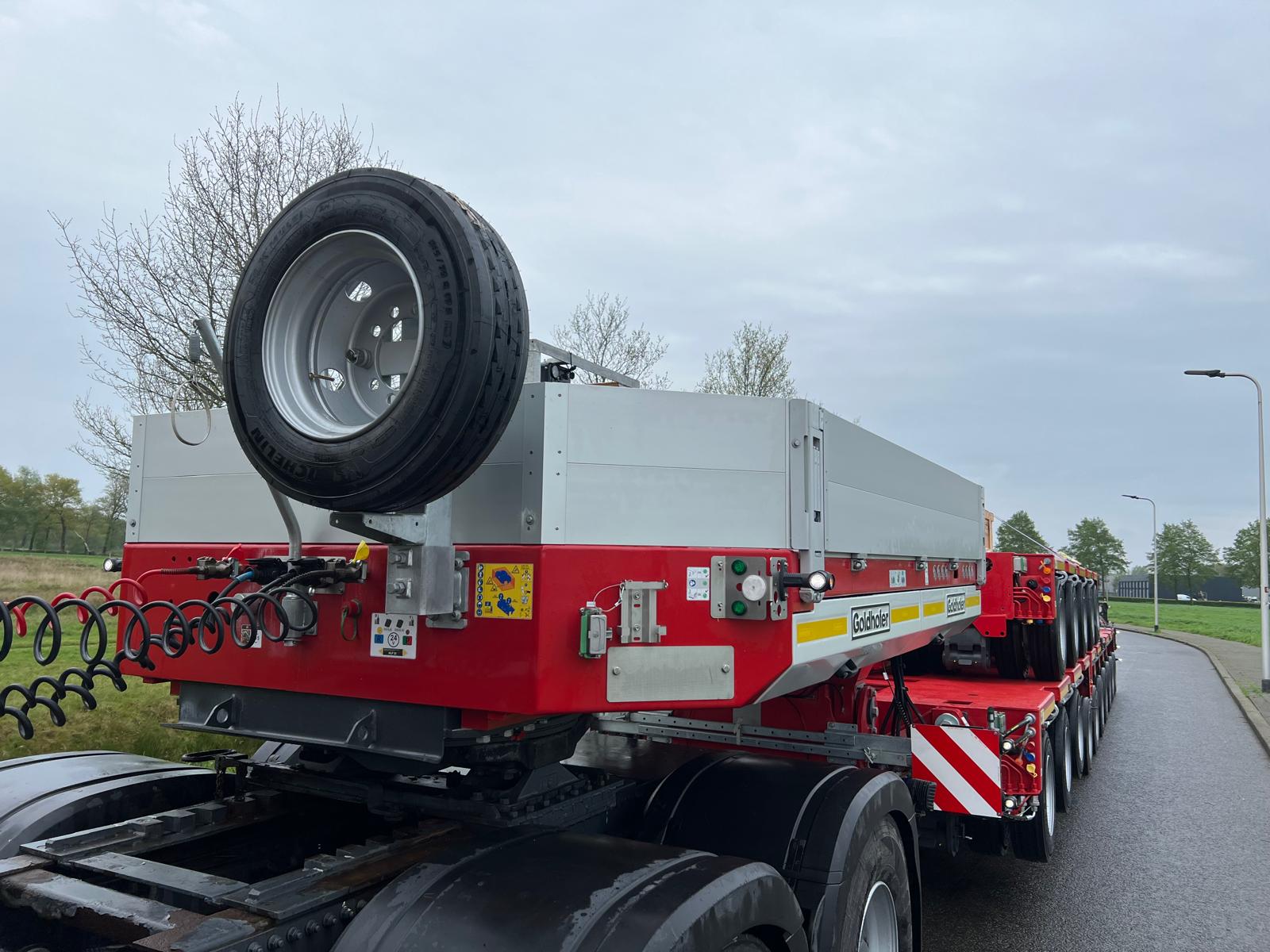

Spare wheel + Spare wheel carrier
Hydraulic locking pin
Auto lube for gooseneck with pump, Beka-MAX

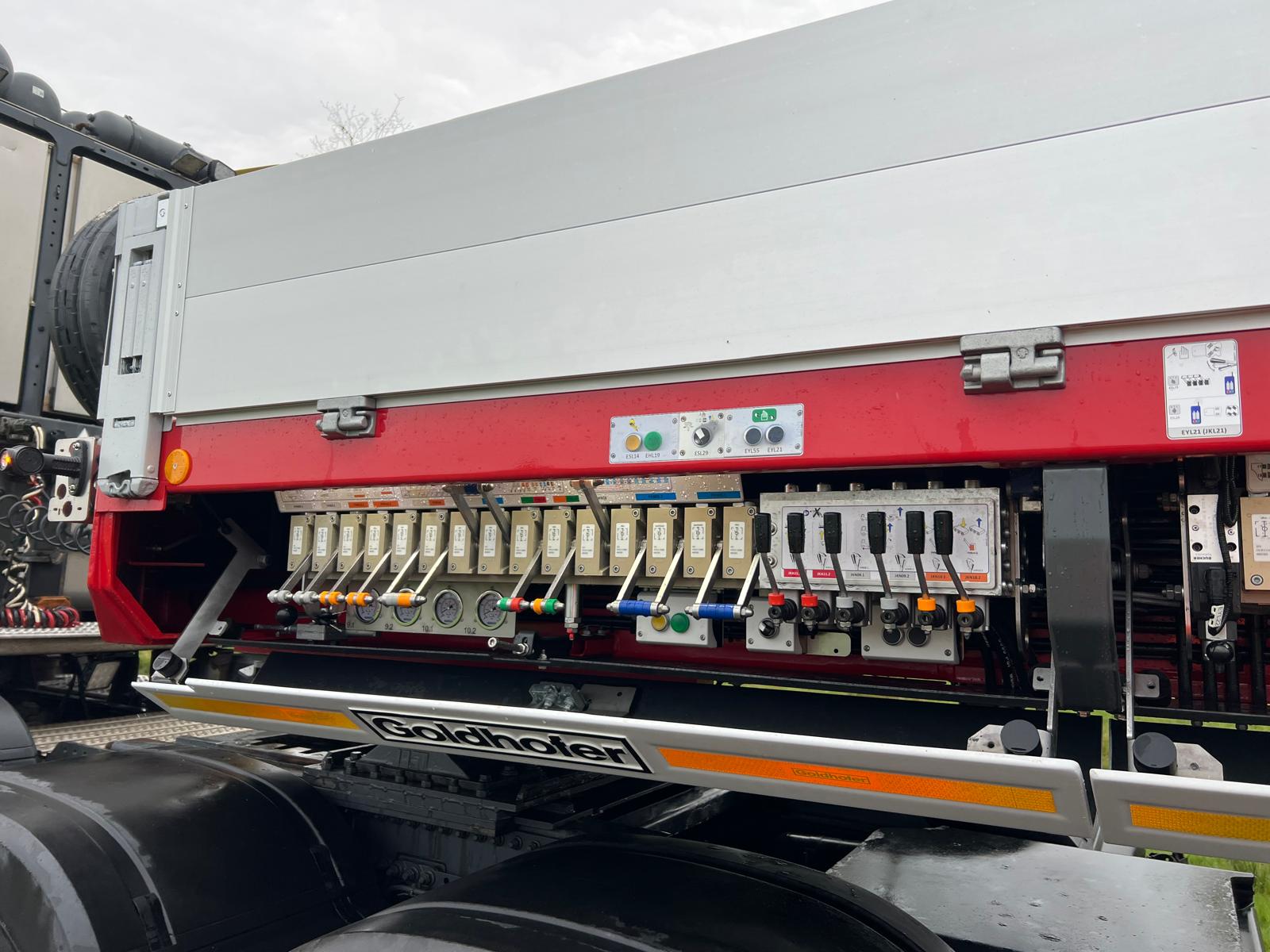

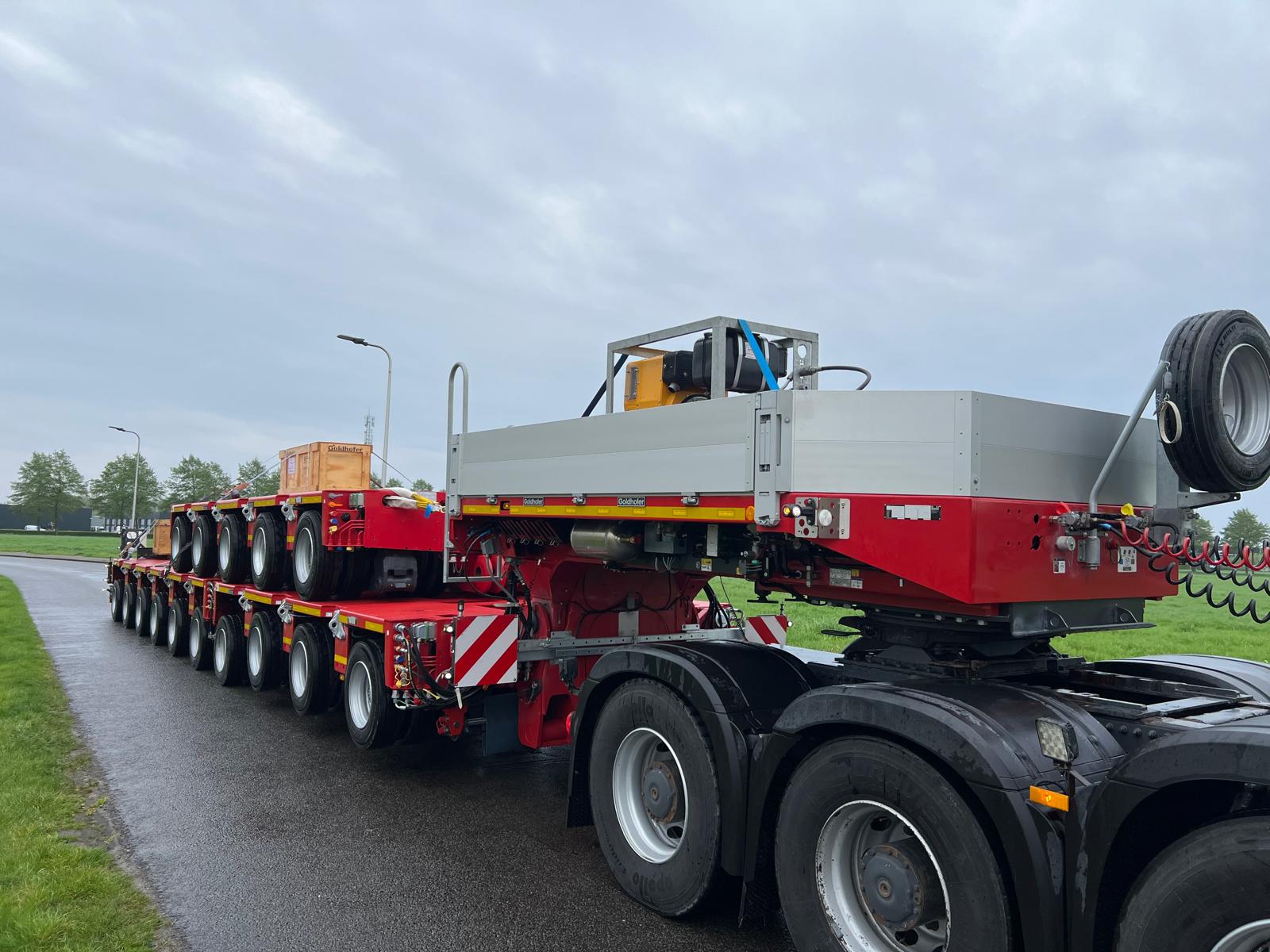

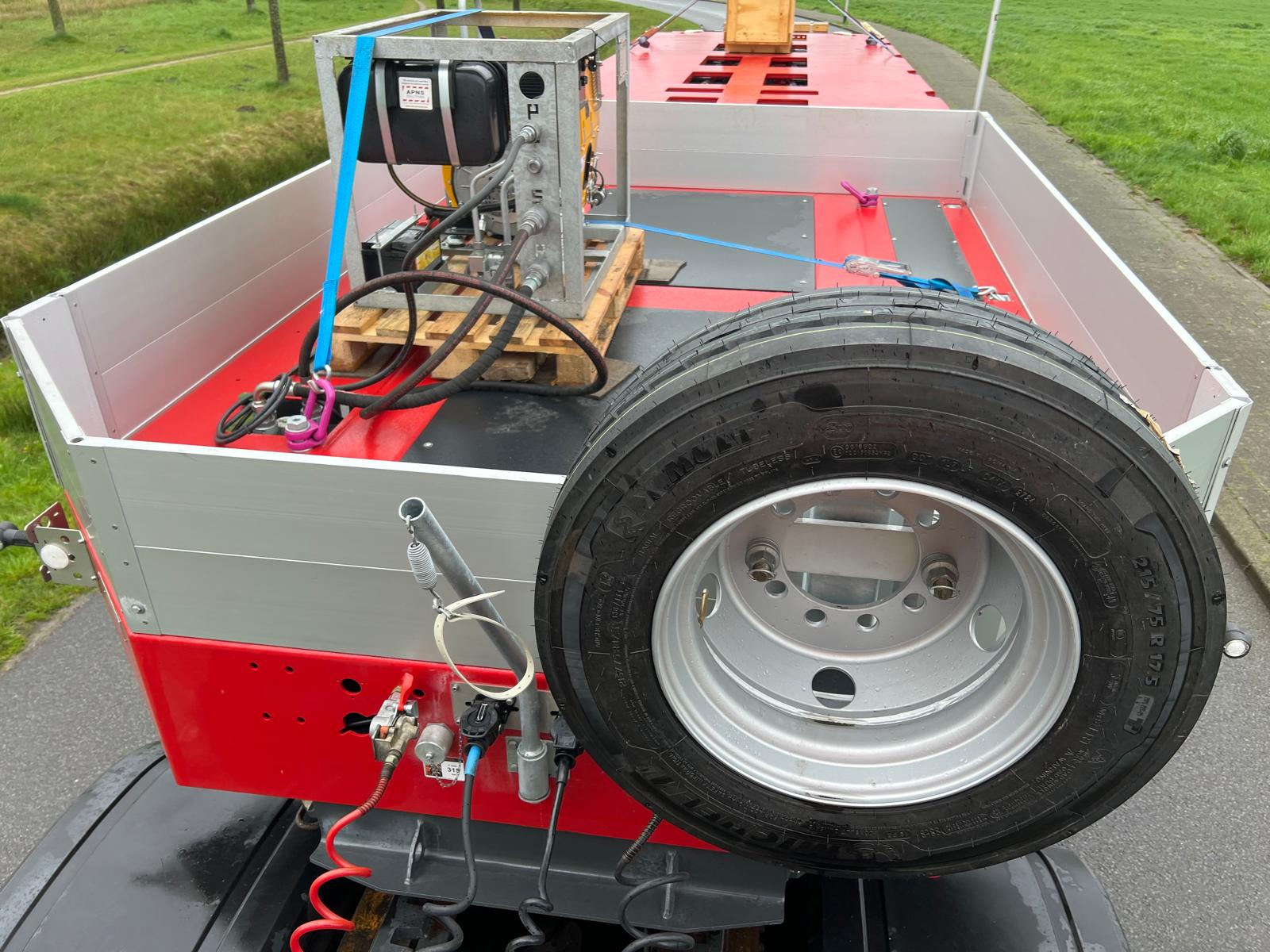

Hatz Diesel PPU
Hatz 1 Cylinder Diesel Engine (silent pack) @ 9.6 kW
240 Ltr hydraulic oil capacity powder coated tank
Capacity of 35 l/m and 250 bar max work pressure
3x different quick connector size for pressure connection
3x different quick connector size for tank connection
Electric RPM control

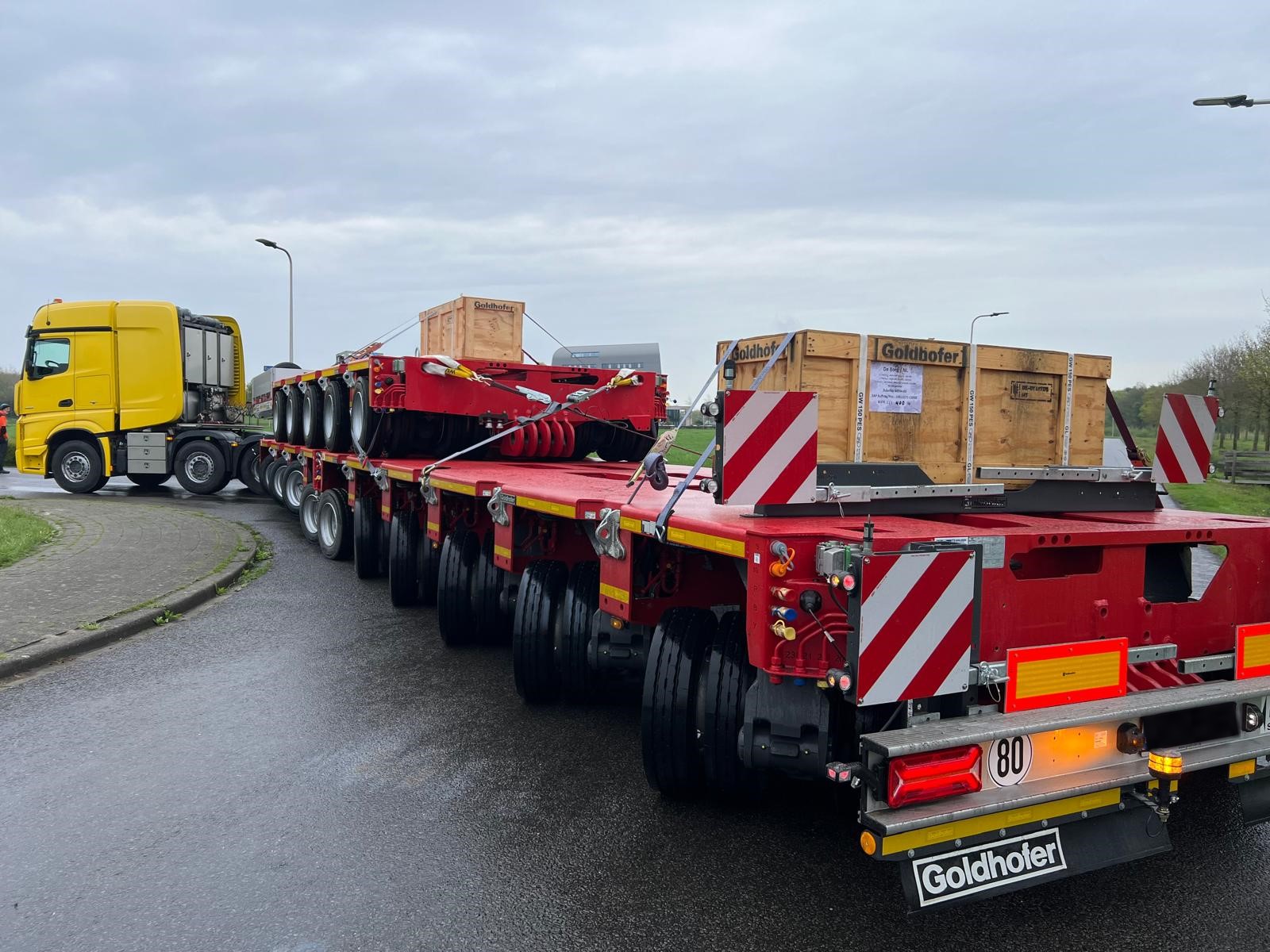

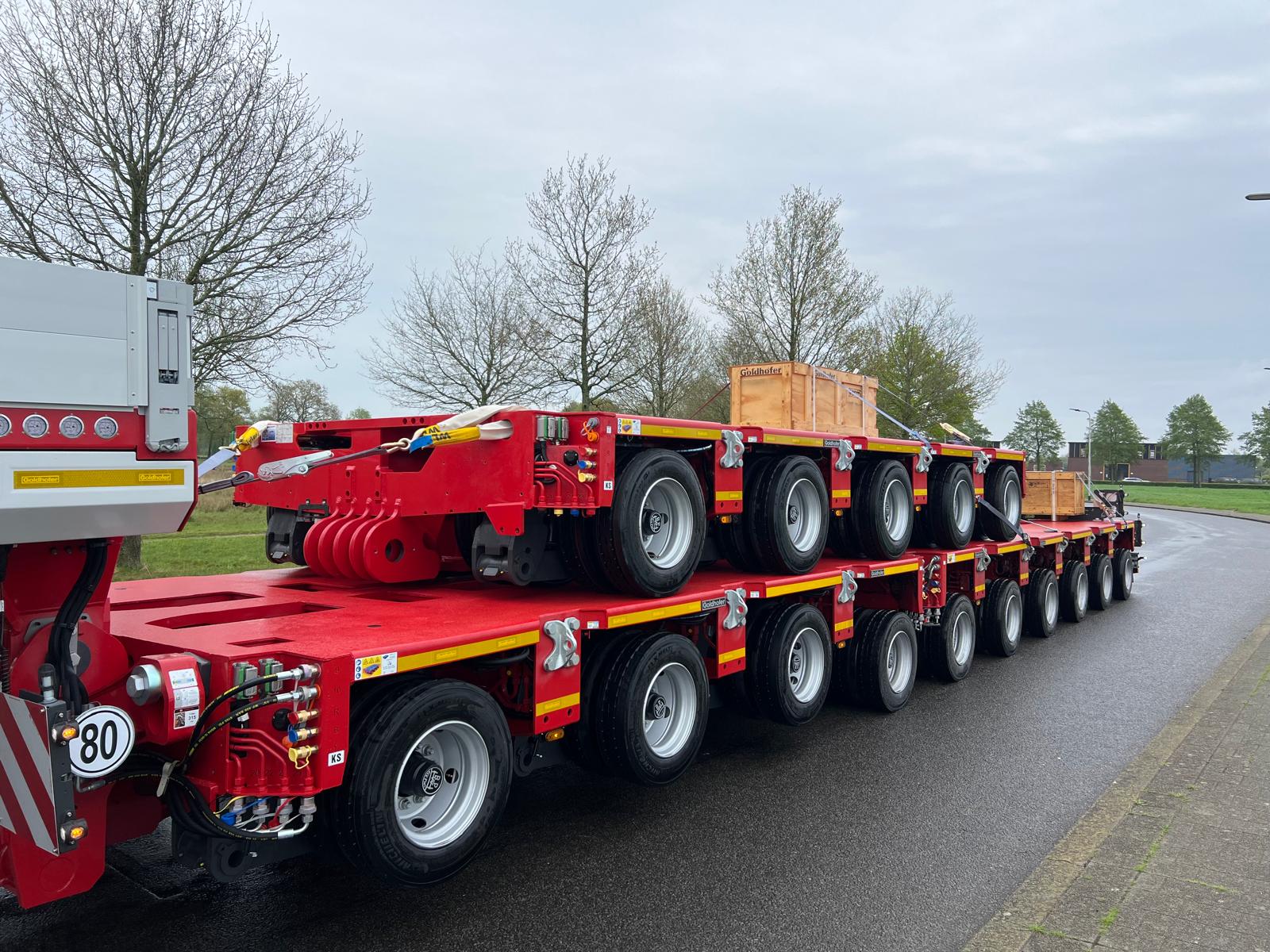

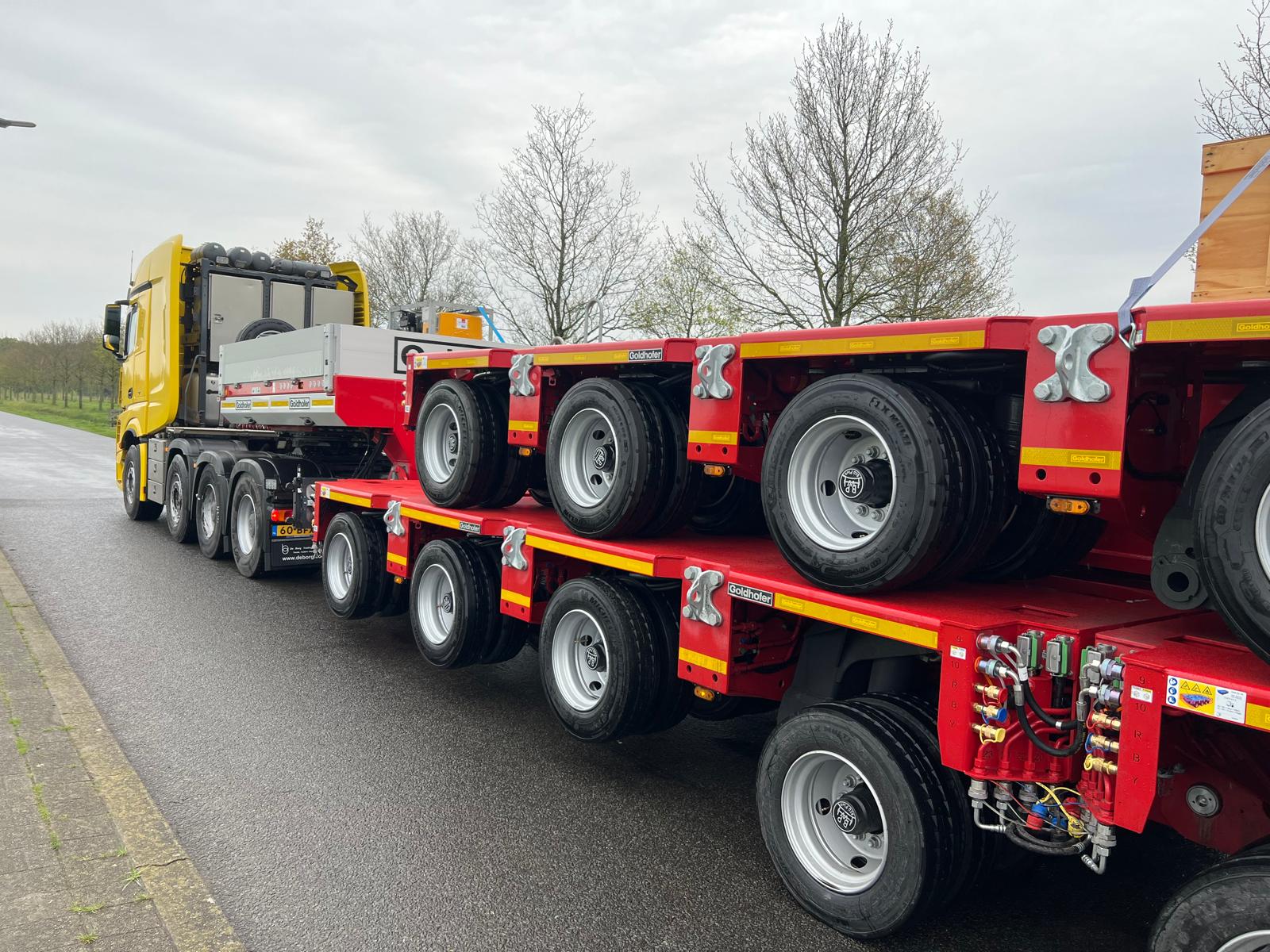

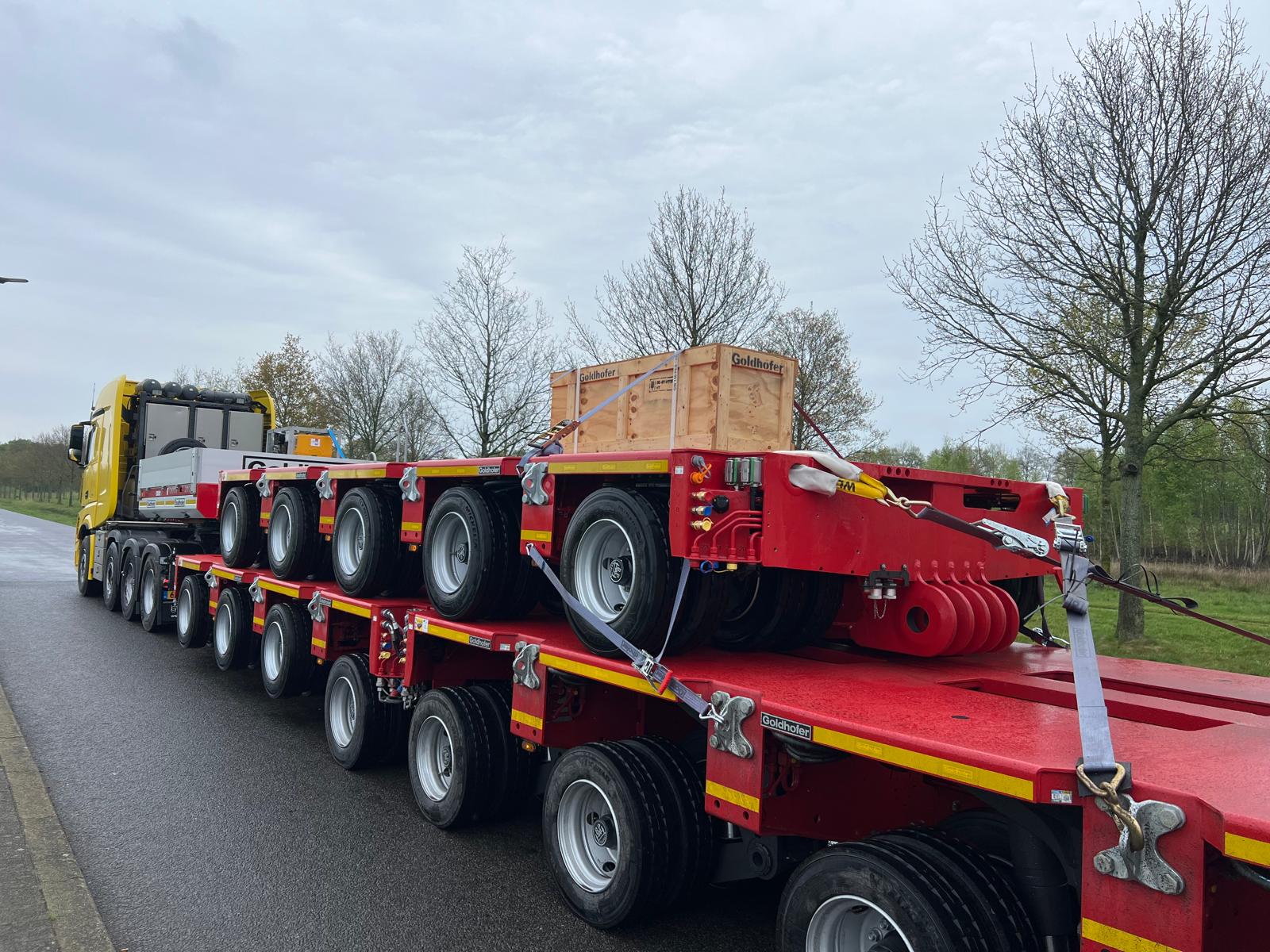

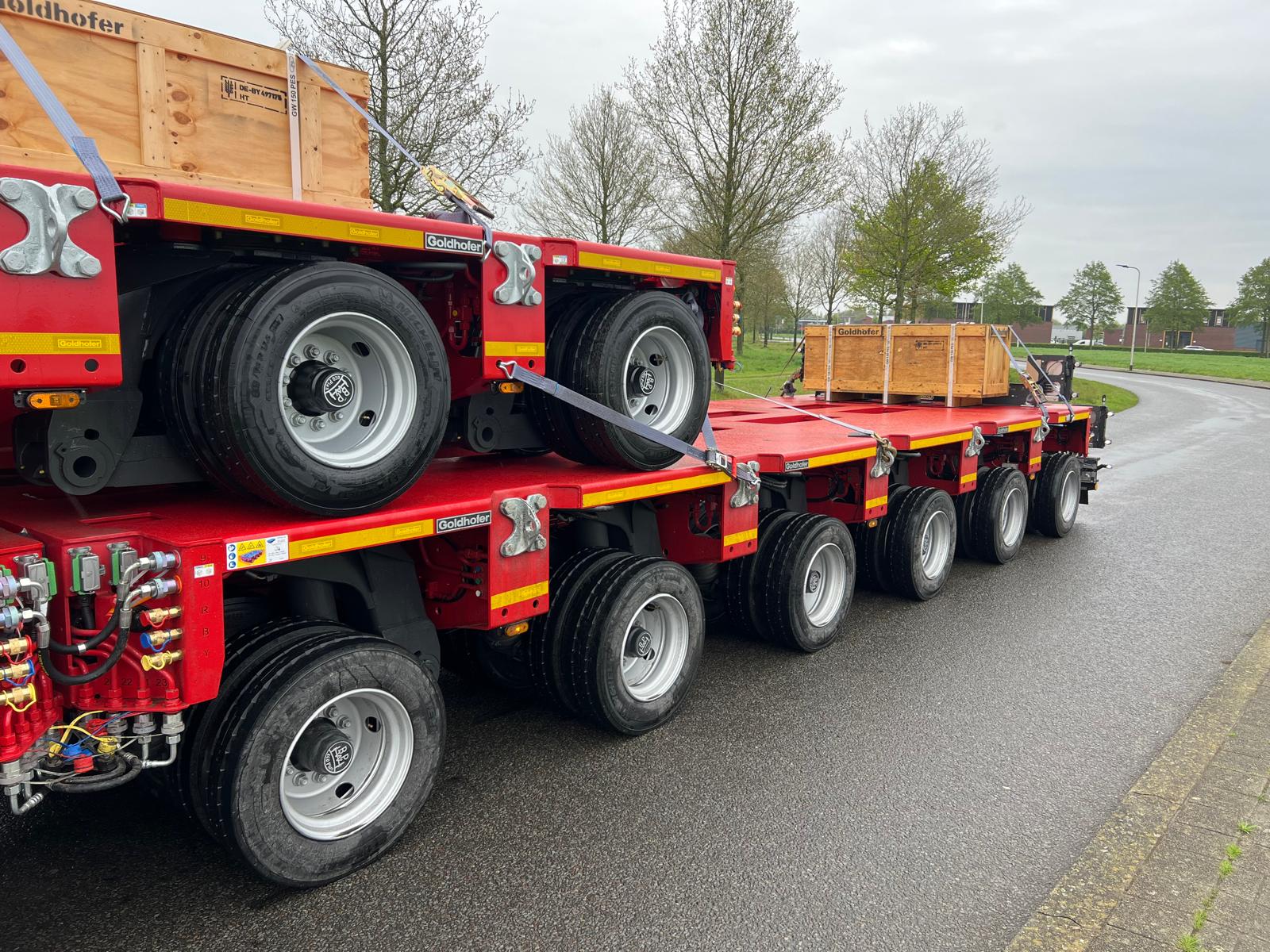

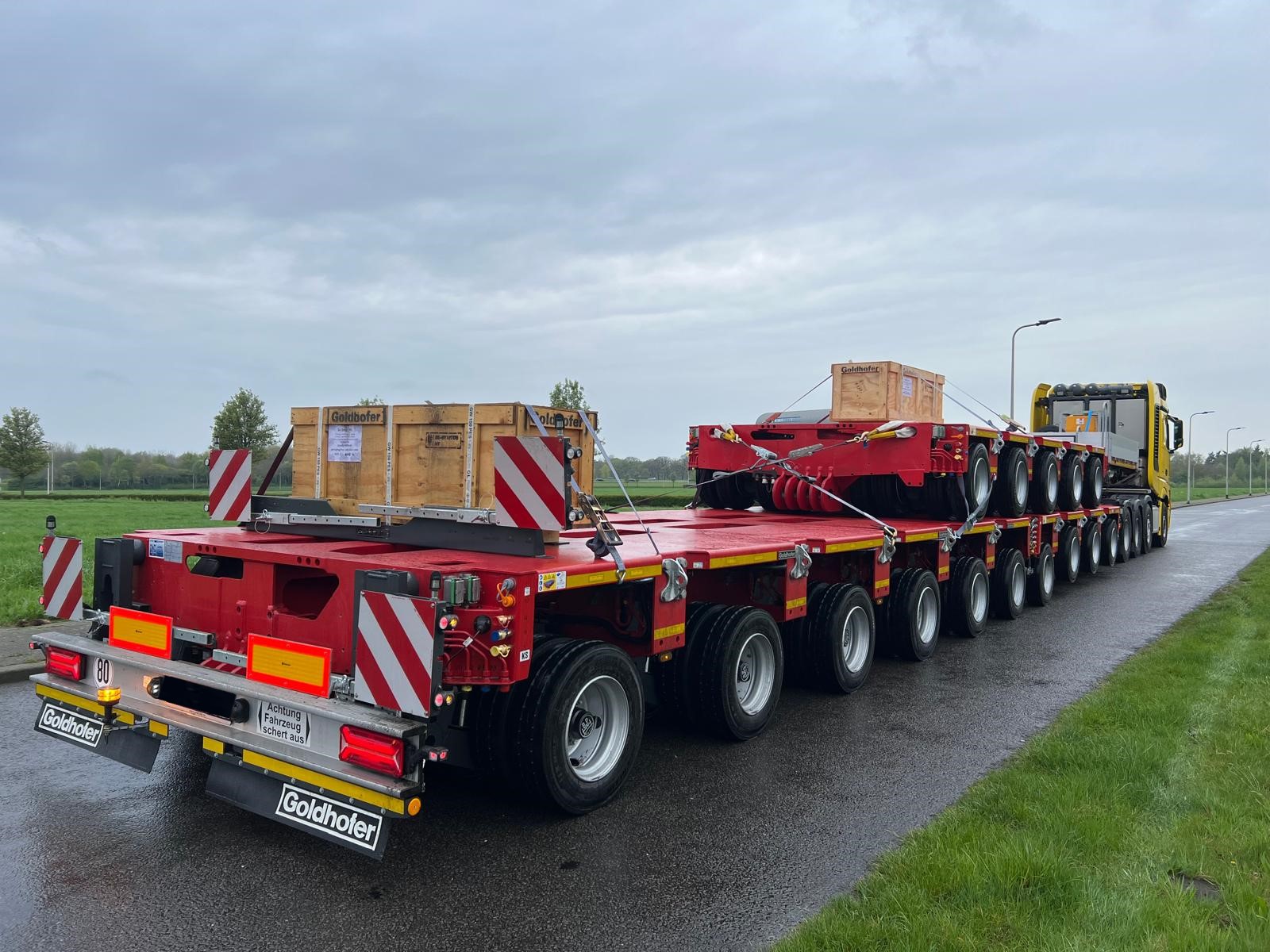

THP SL 4
Maximum axle load: 45.000 kg per axle
Total axle load: 4x 45.000 kg = 180.000 kg
GVW: 180.000 kg
Empty weight: 13.850 kg
Loading capacity: 166.150 kg
Total lenght: 6.000 mm
Loading floor width: 3.000 mm
Height: 1.175 mm. (+/- 300)

THP SL 5
Maximum axle load: 45.000 kg per axle
Total axle load: 5x 45.000 kg = 225.000 kg
GVW: 225.000 kg
Empty weight: 17.250 kg
Loading capacity: 207.750 kg
Total lenght: 7.500 mm
Loading floor width: 3.000 mm
Height: 1.175 mm. (+/- 300)

THP SL 6
Maximum axle load: 45.000 kg per axle
Total axle load: 6 x 45.000 kg = 270.000 kg
GVW: 270.000 kg
Empty weight:19.800 kg
Loading capacity: 250.200 kg
Total lenght: 9.000 mm
Loading floor width: 3.000 mm
Height: 1.175 mm. (+/- 300)
