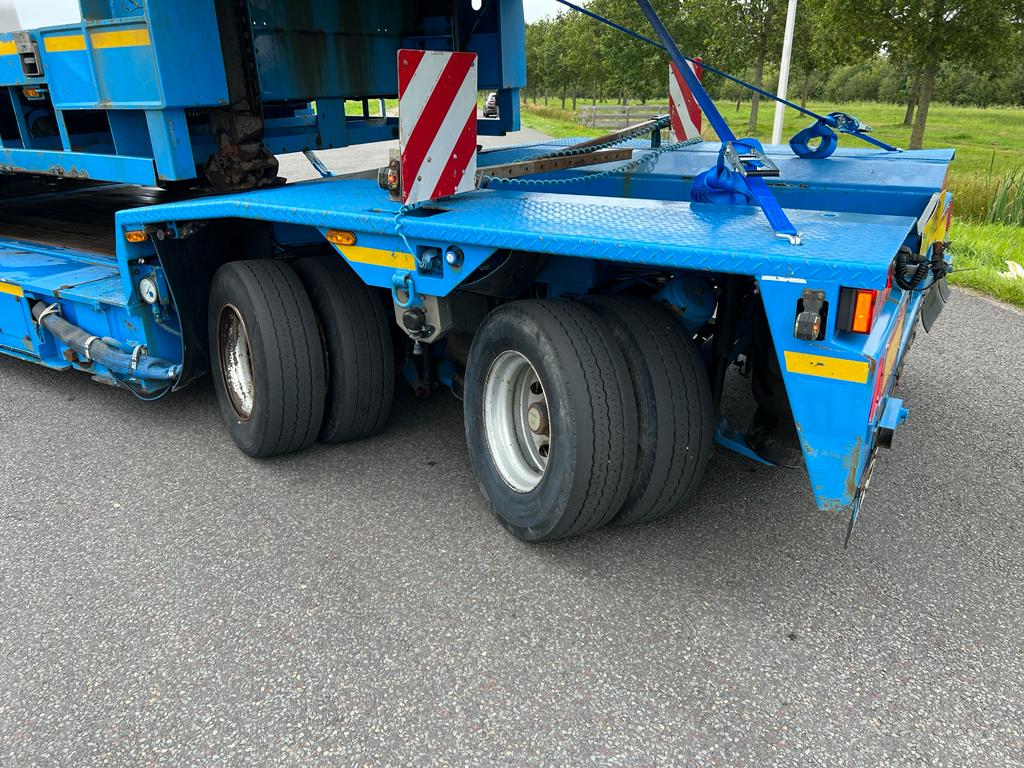

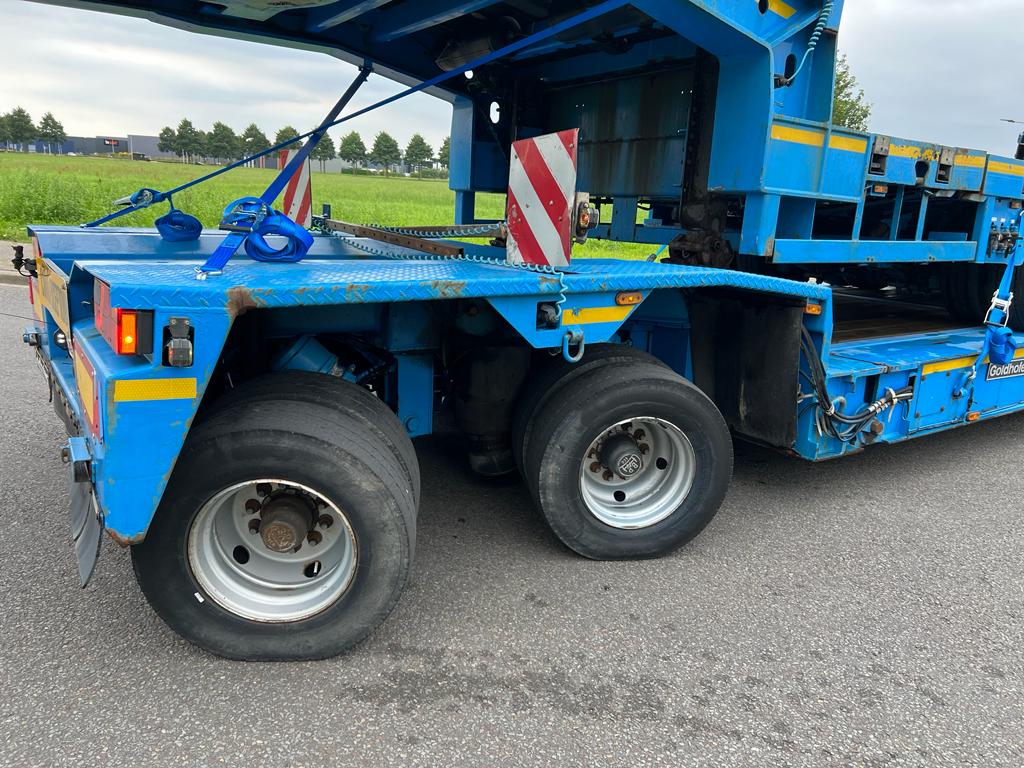

Goldhofer STZ-VKL 2-26/80A Extendable Low Loader

Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (1)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (6)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (2)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (4)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (3)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (7)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (10)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (11)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (12)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (14)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (16)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (19)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (22)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (27)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (1)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (6)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (2)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (4)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (3)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (7)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (10)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (11)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (12)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (14)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (16)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (19)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (22)
Goldhofer STZ-VKL 2-26 80 A - WG0STZV2480030238 (27)

Kontakt

DETAILS

Zusätzliche Information

Main Features
Manufacturer: Goldhofer
Model: STZ-VKL 2-26 80/A
Chassis number: WG0STZV2480030238
Year: 2009

Gewichte/Ladekapazität
King-Pin load: 18.000 kg
Axle load: 11.200 kg
Total axle load: 22.400 kg
GVW: 40.400 kg
Empty weight: 14.200 kg
Loading capacity: 26.200 kg

Axles
Brand Axles: BPW
Air suspension
All axles hydraulic steering
High Low Valve
Tyres: Michelin 235/75 R17.5

Dimensions
Length: 15.970 mm
Extension: 5.700 mm
Max extended length: 21.670 mm
Loading floor length: 13.010 mm
Loading floor width: 2.748 mm
Height: 940 mm – 1.030 mm
King-Pin height: +/- 1.350 mm

Additional Information
Truck PTO, Argus connection
Hydraulic operated Gooseneck
Detachable Gooseneck, quick-couplers
Toolbox
Lashing rings
Removable floor parts
Spare wheel + holder
Rear bumper with lights
King-pin 2,0”
Central greasing
Pressure indicator at axles
Excavator through

*The Goldhofer in these images is stacked with a 5-axle trailer. This offer solely includes the bottom Goldhofer 2-axle trailer!
