DOLL S6E-S2 (1+5) Semi Low Loader

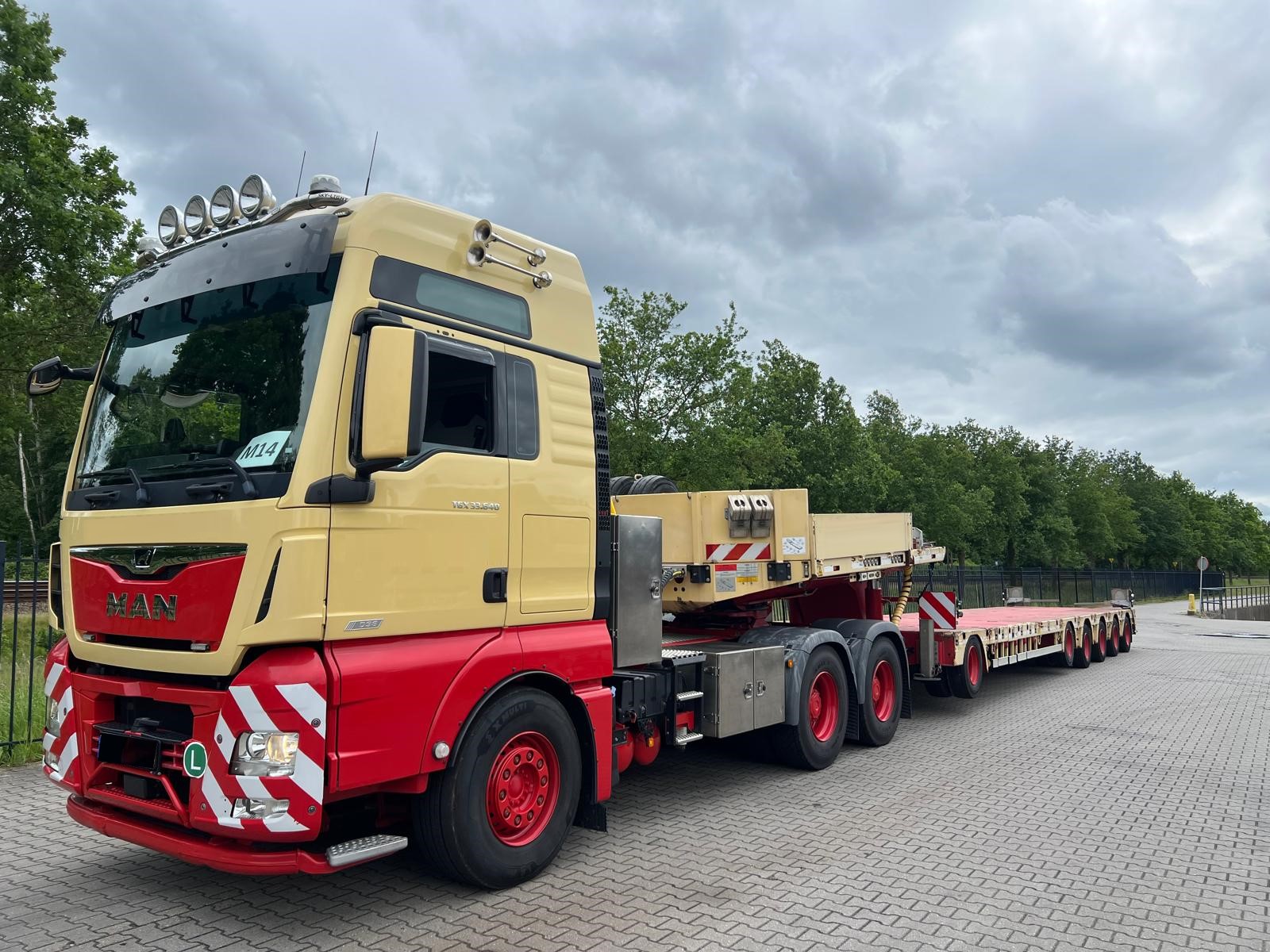

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (1)

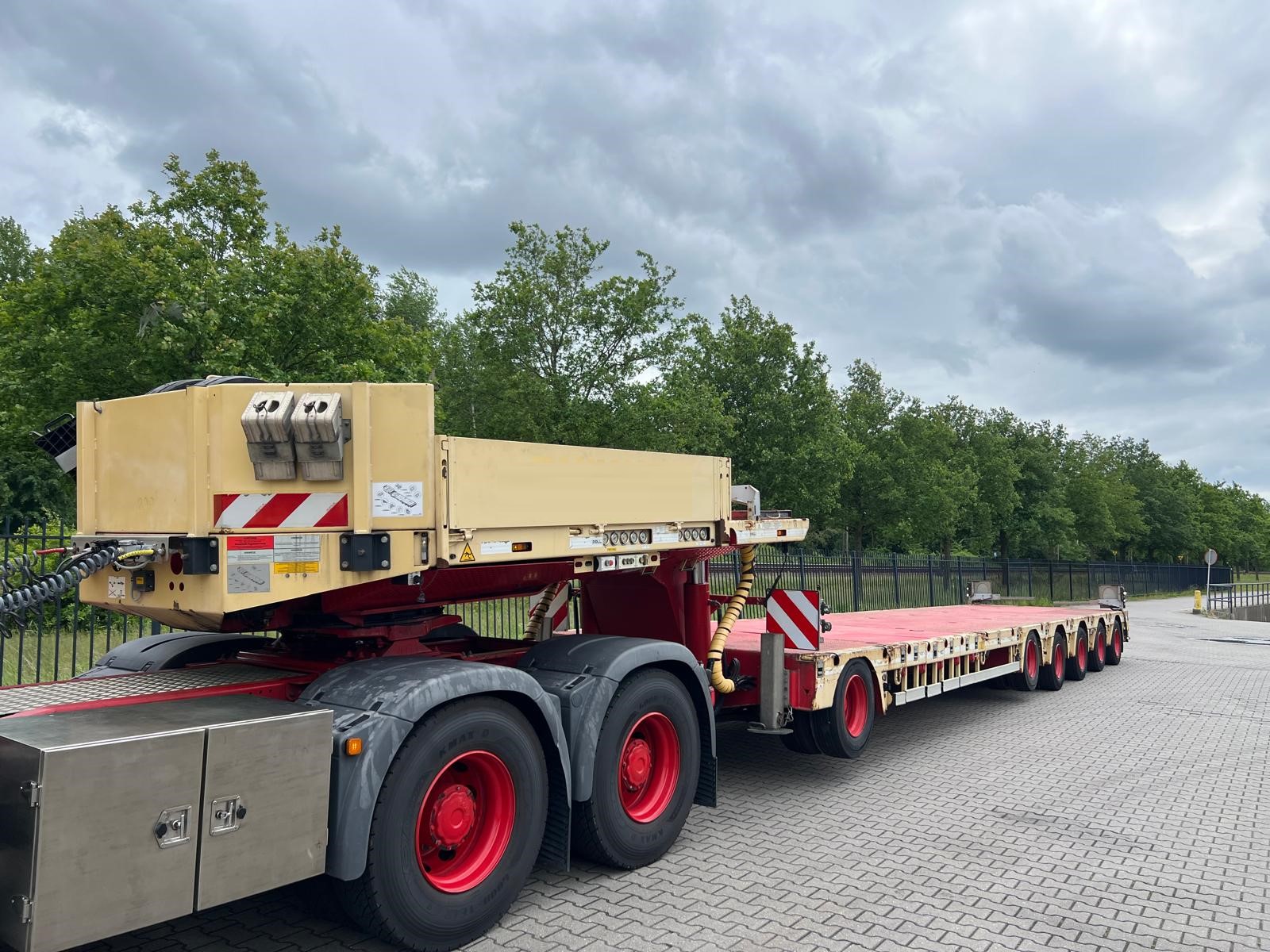

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (2)

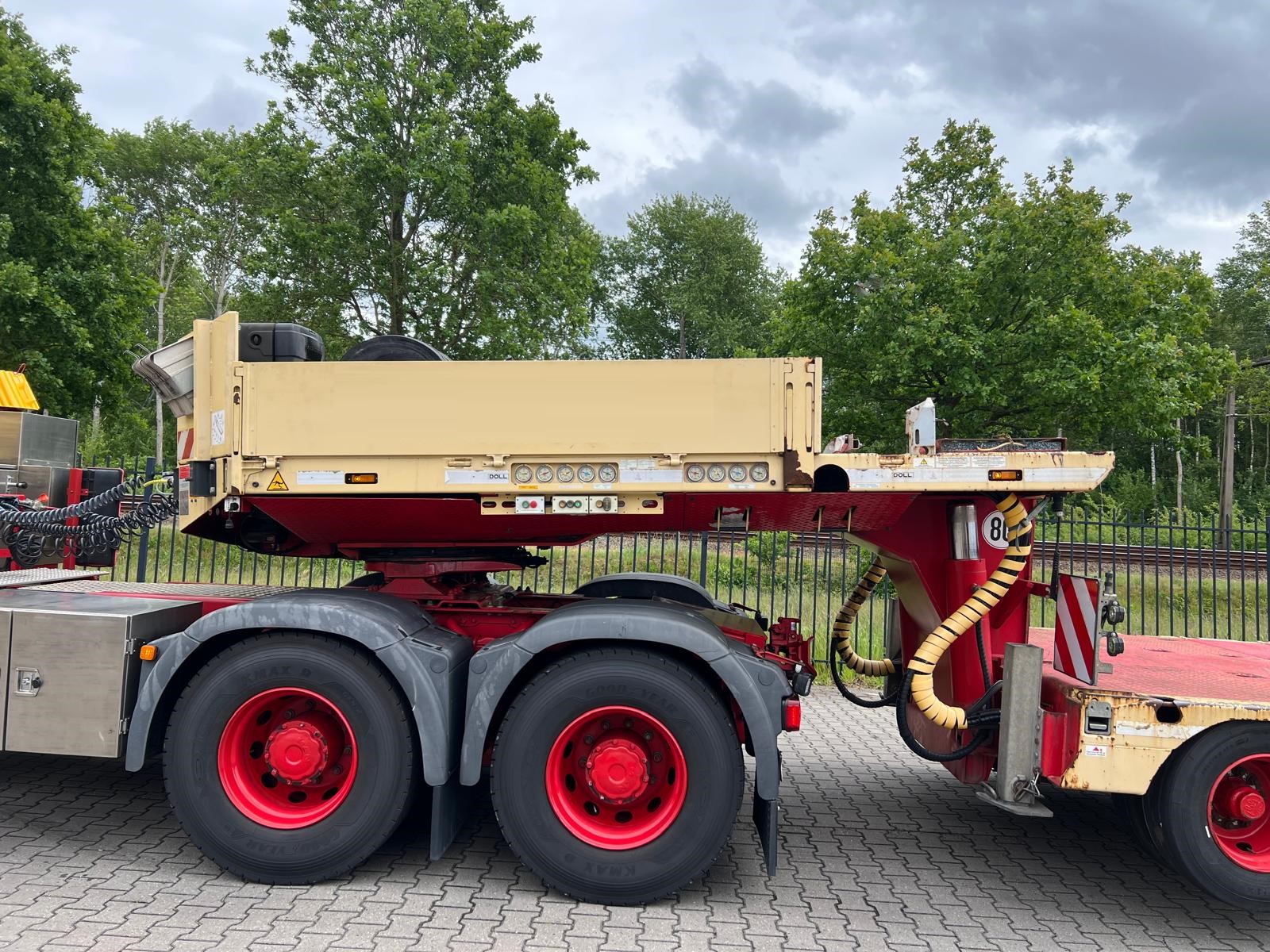

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (3)

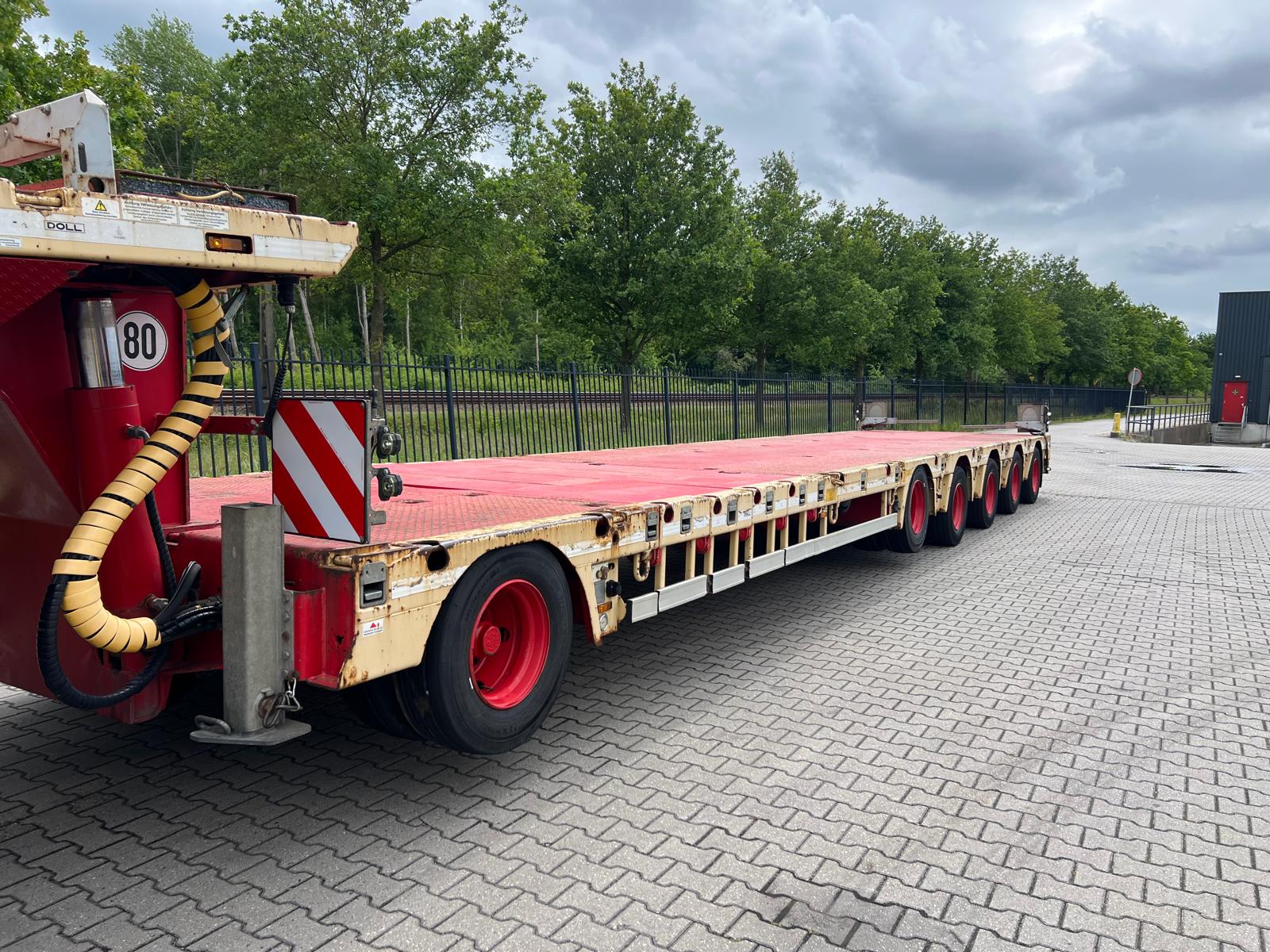

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (8)

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (9)

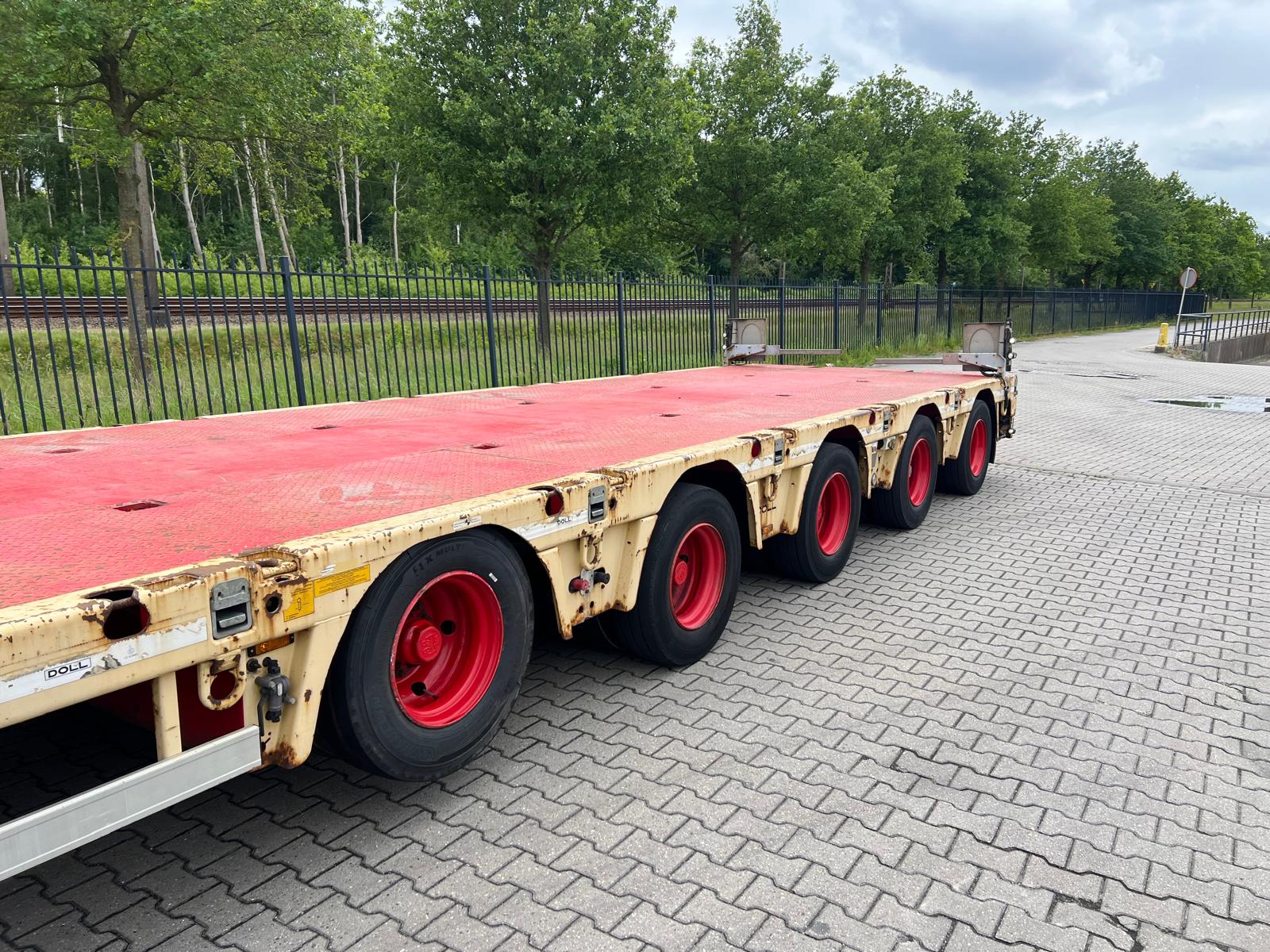

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (10)

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (11)

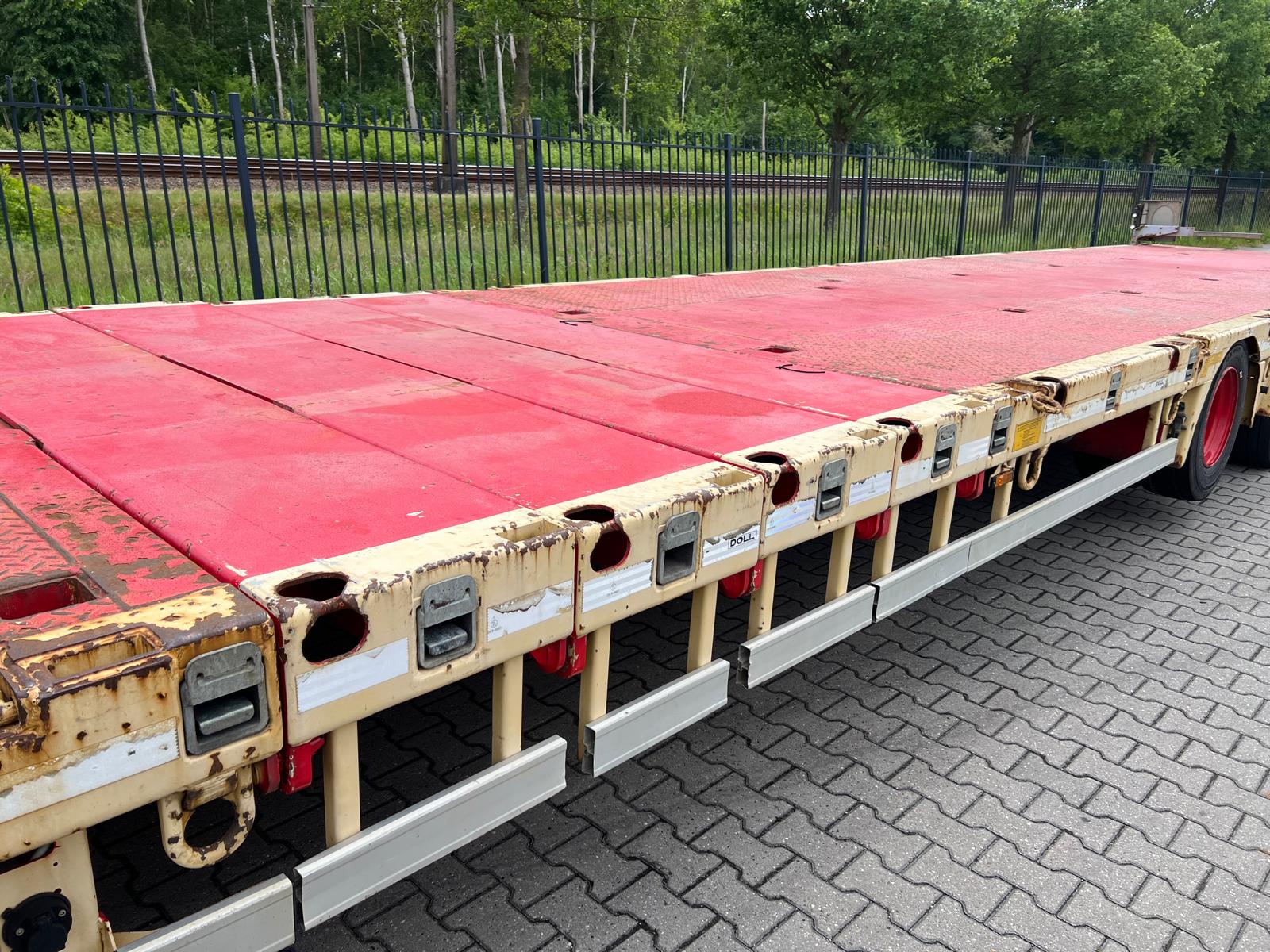

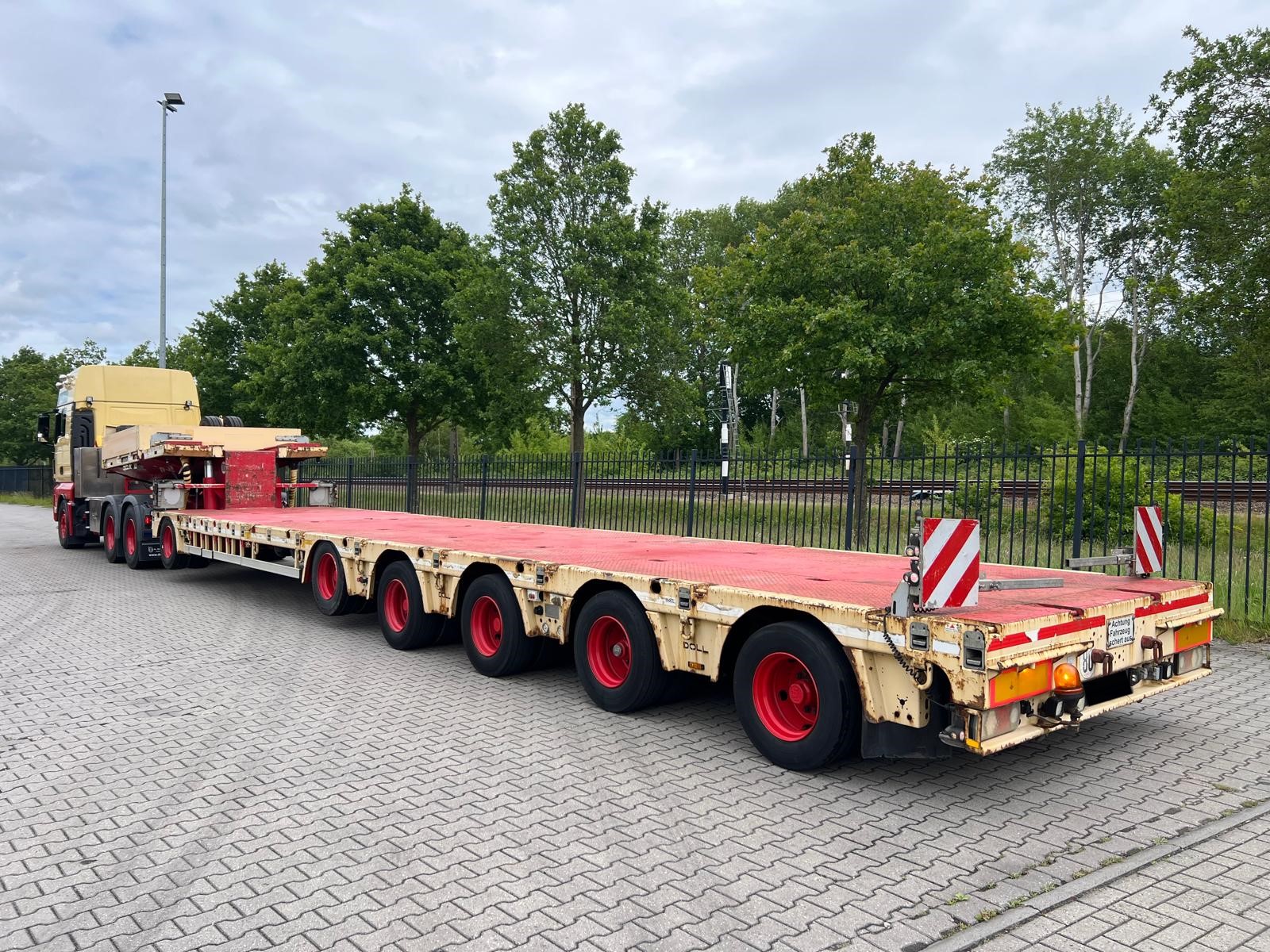

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (14)

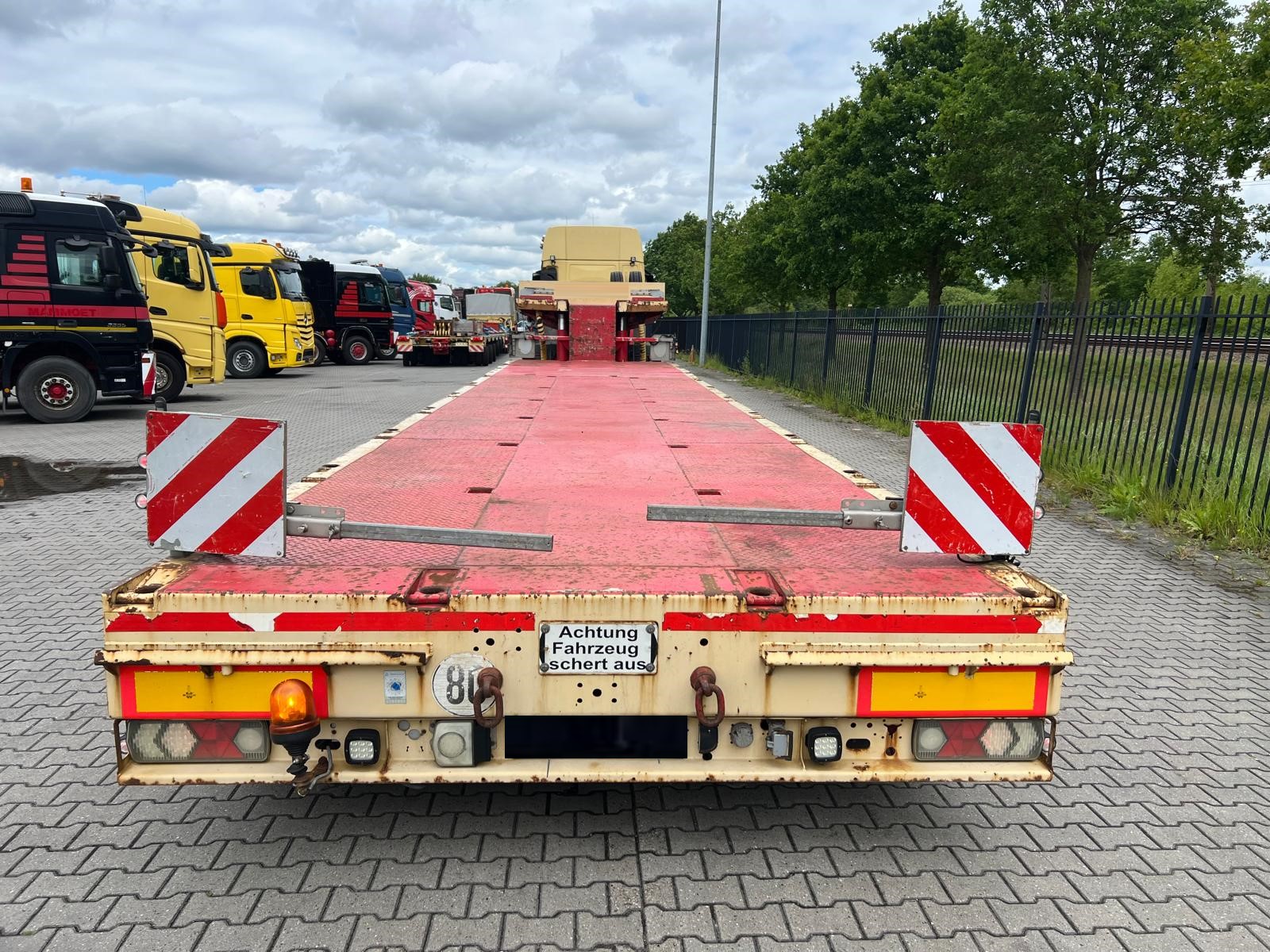

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (15)

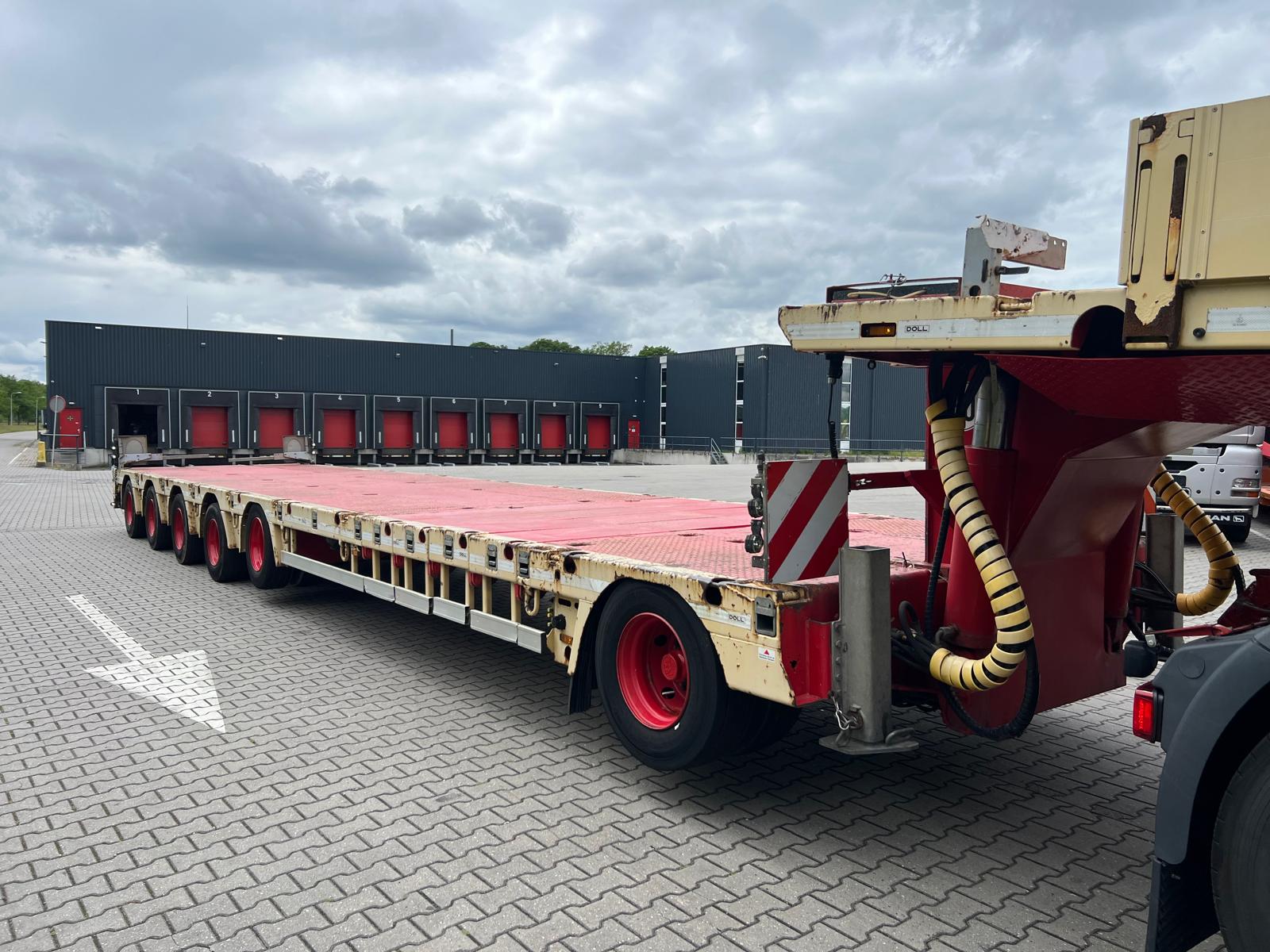

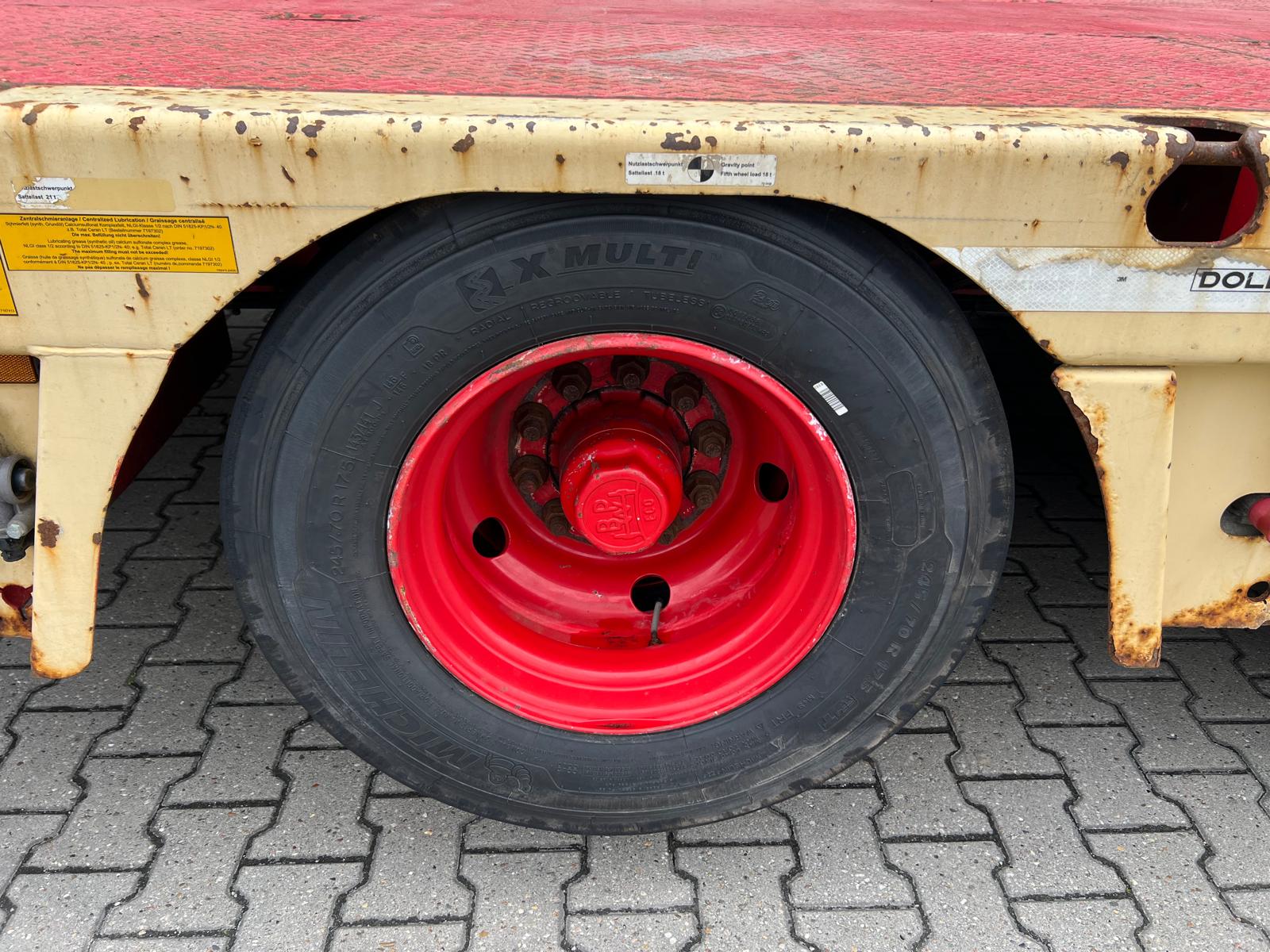

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (18)

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (27)

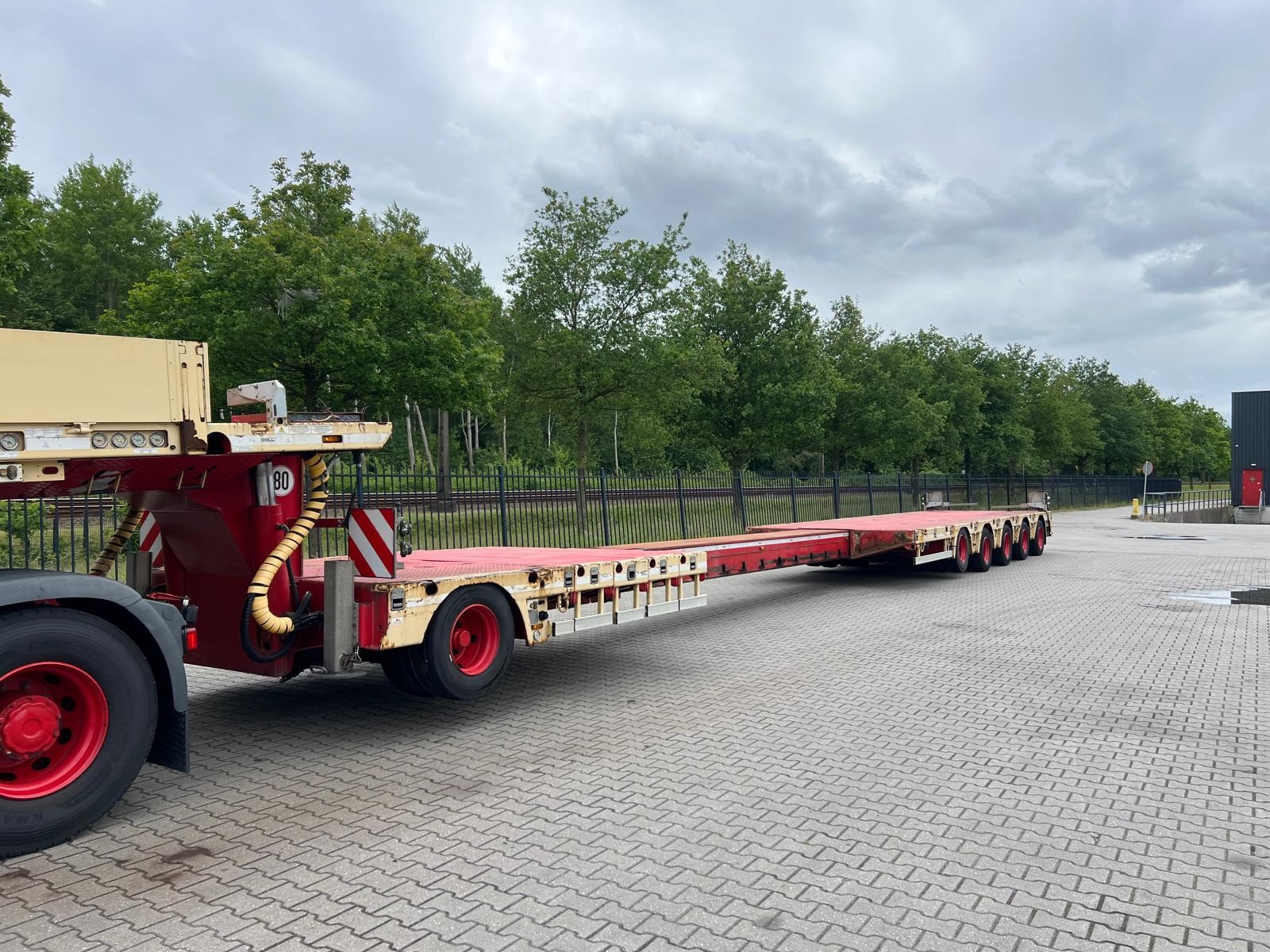

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (26)

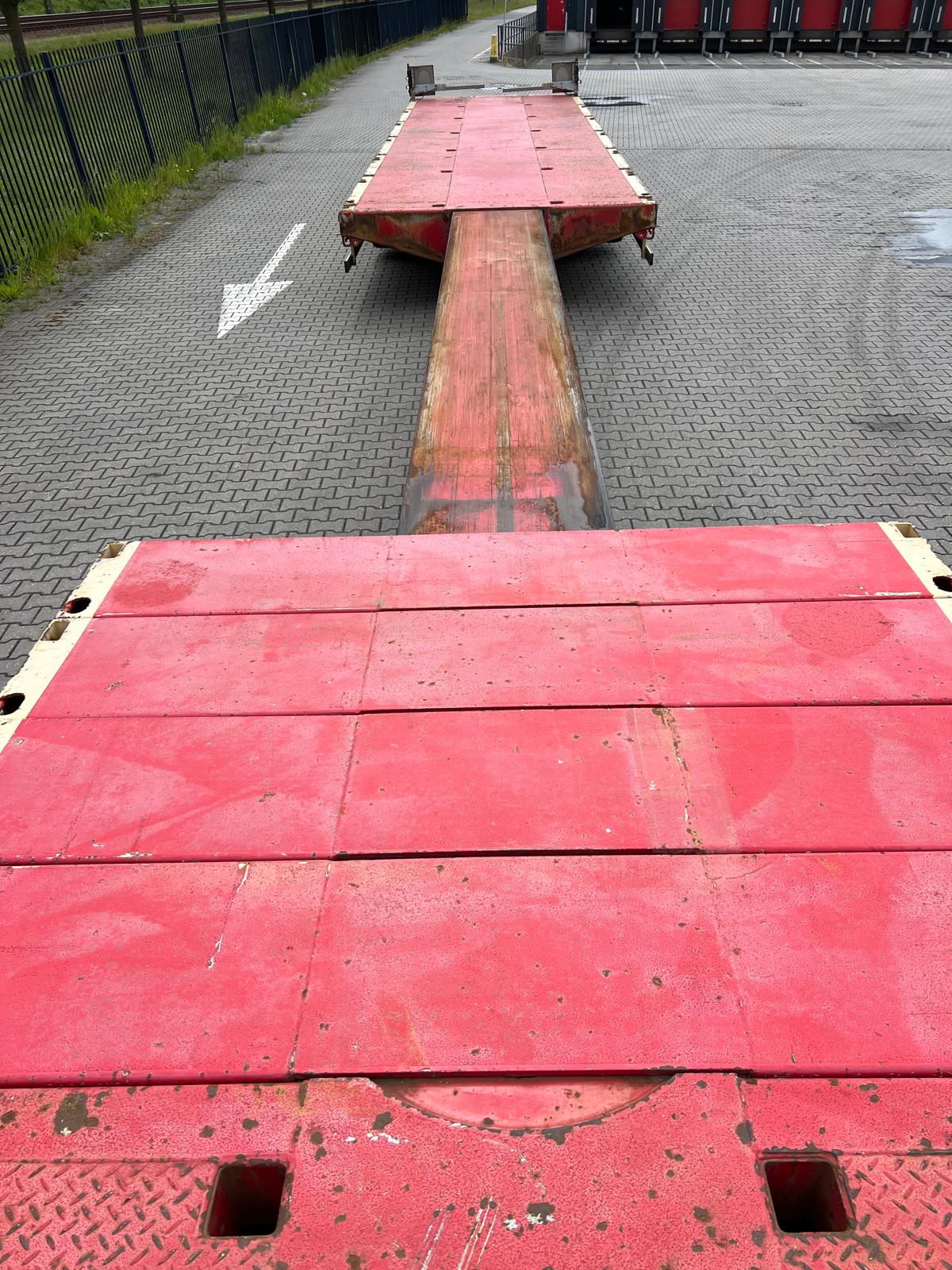

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (32)

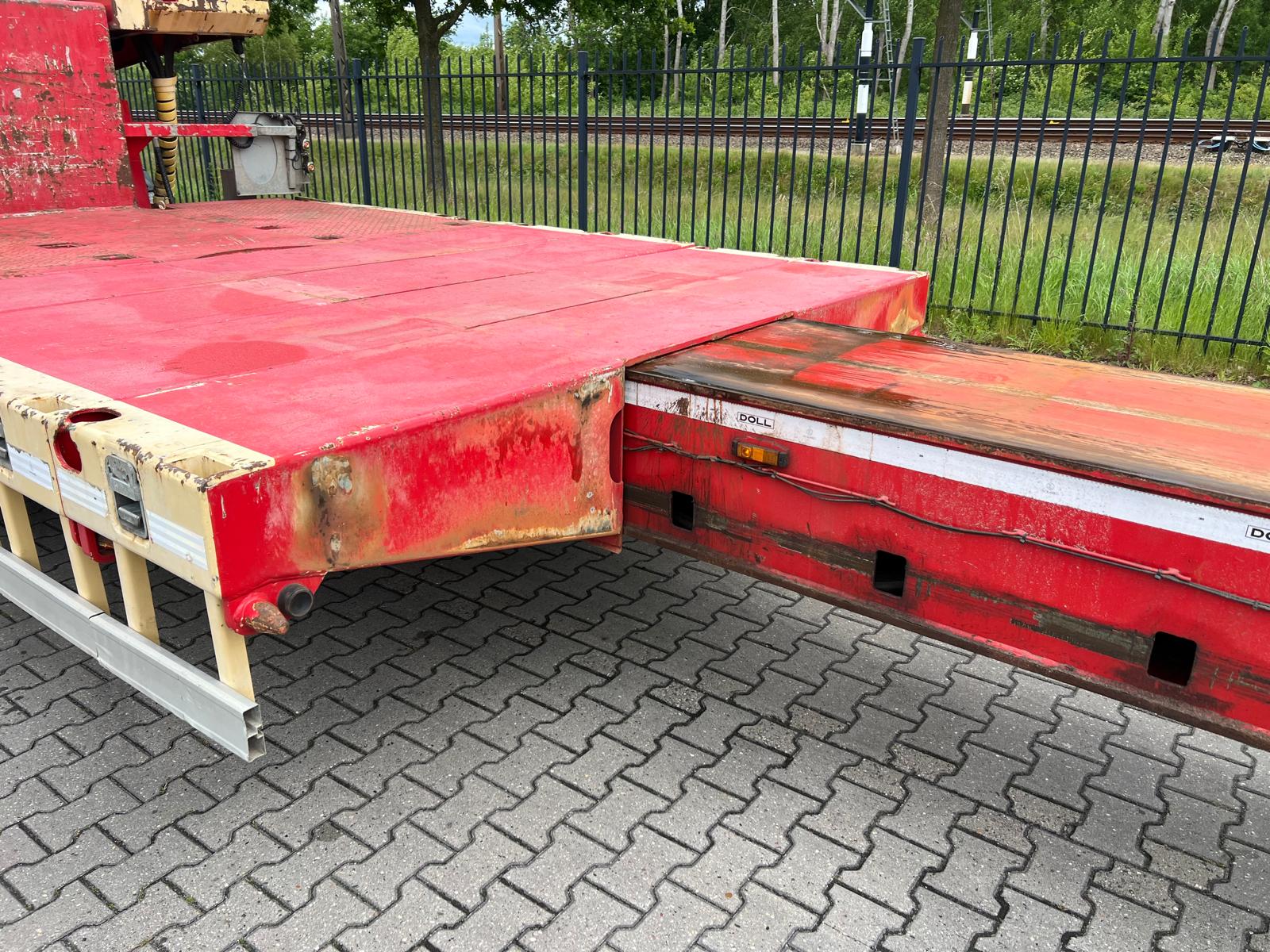

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (30)

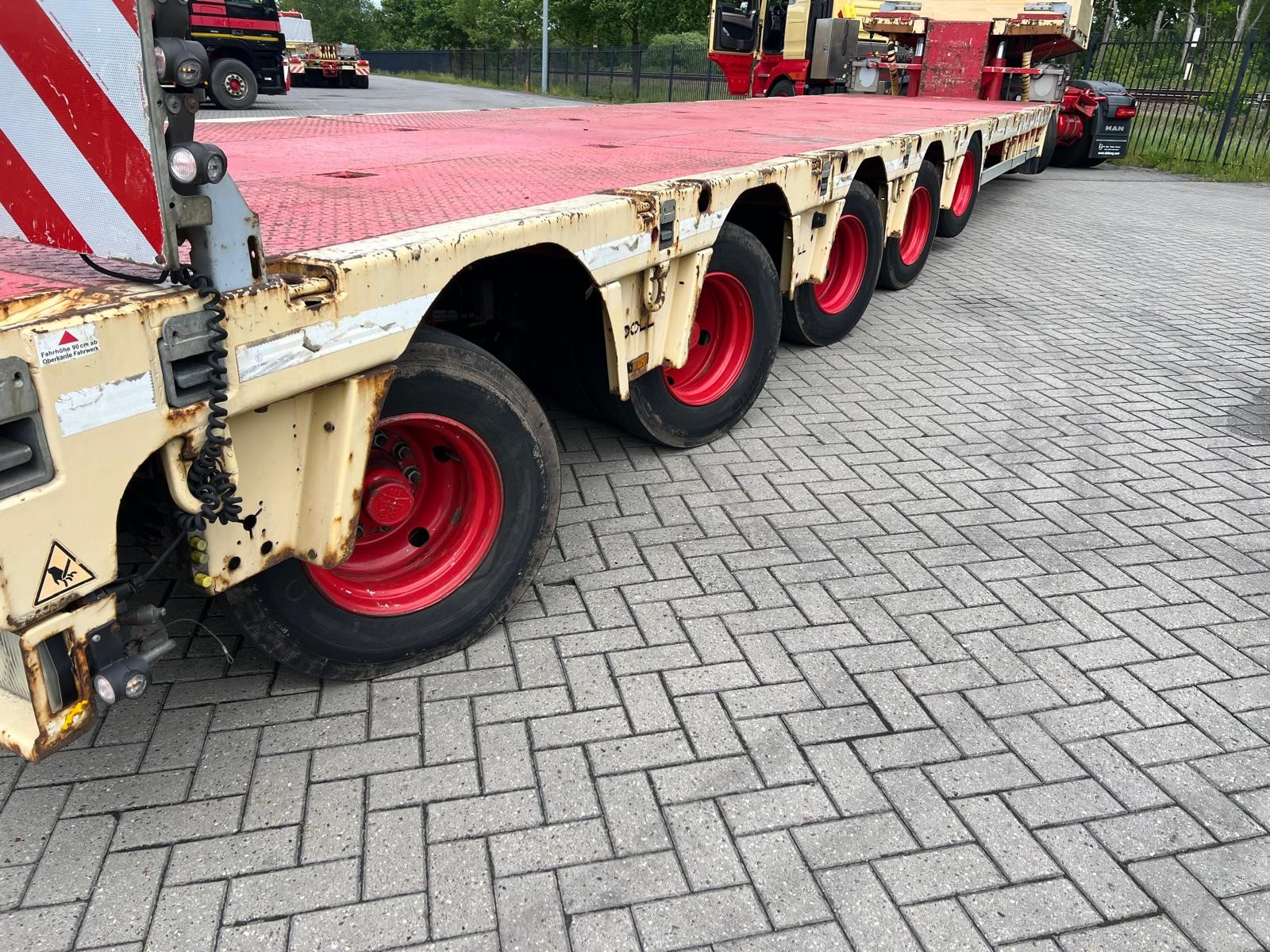

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (37)

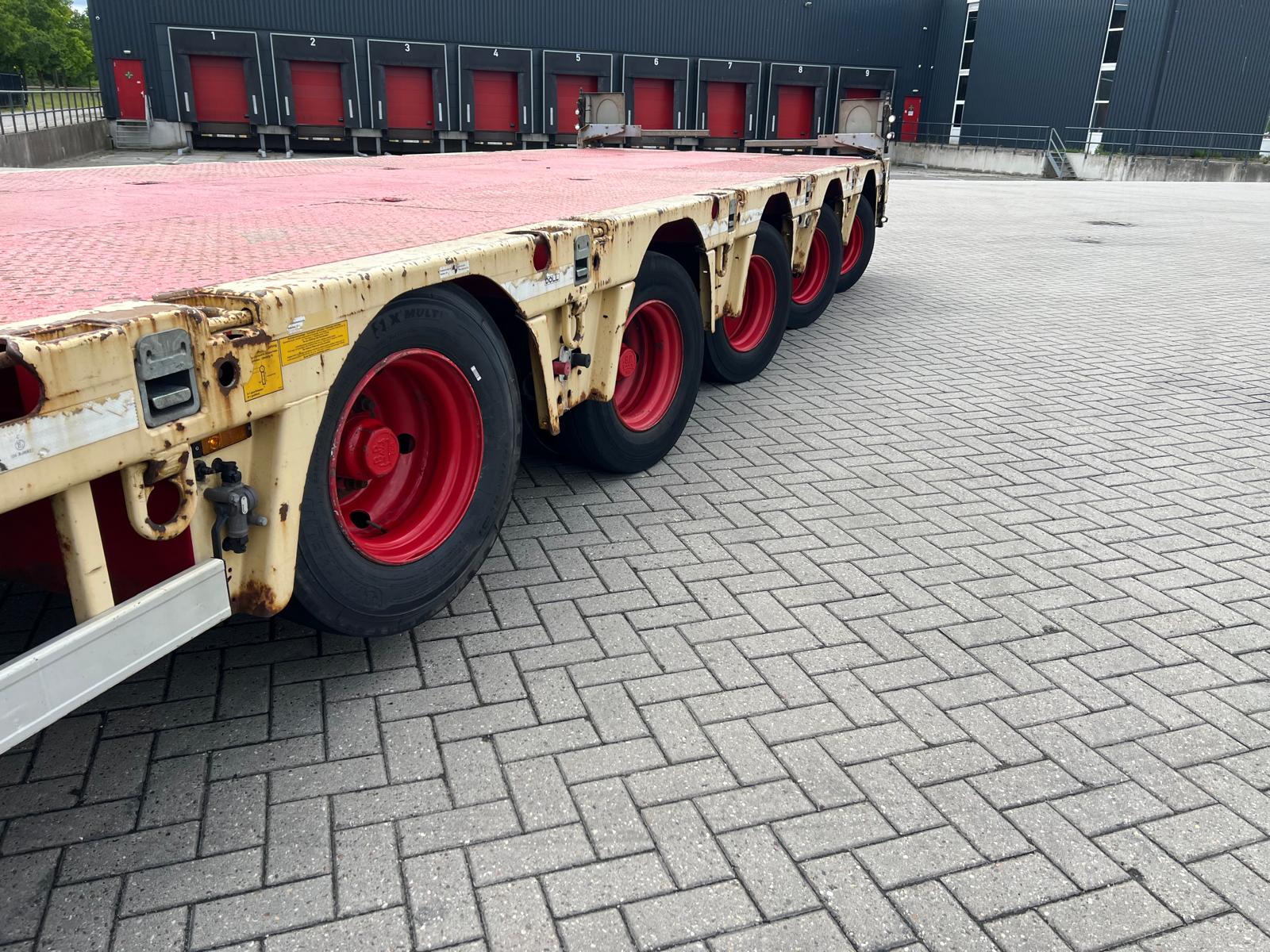

DOLL 1+5 S6E S2 25 trailer - W09S6E672E0D04010 (35)

Kontakt

DETAILS

Zusätzliche Information

Main Features
Manufacturer: DOLL
Type: S6E-S2-1+5
Chassis number: W09S6E672E0D04010
Year: 2014

Gewichte/Ladekapazität
King-Pin load: 25.000 kg
Axle load: 12.000 kg
Total axle load: 12.000 x 6 = 72.000 kg
GVW: 97.000 kg
Empty weight: 21.650 kg
Loading capacity: 75.350 kg

Axles
Brand axles: BPW
Hydraulic supsension
All axles hydraulic steering
WABCO braking system with EBS
Tyres: 245 /70 R 17,5

Dimensions
Length: 15.510 mm
Extensions: 8.000 mm
Max extended length: 23.510 mm
Loading floor length: 11.250 mm
Loading floor width: 2.550 mm
Height: 850 mm (+245 mm -70 mm)
King-Pin height: +/- 1.340 mm

Additional Information
4x spacer
Lashing rings
Stake pockets
Mechanical landing gear
2x Spare wheel + holder
Wheel stops
Rear bumper with lights
King-pin 3,5”
Central lubrication
